Features
Scene recall
Scene raise and lower
Direct connection to GL100 controllers
All buttons back lit with blue LED’s
Brushed stainless steel finish
Other finishes available on request
Accessories
GSC05 - 5 meter RJ11 cable
GSC10 - 10 meter RJ11 cable
GSC15 - 15 meter RJ11 cable
Downloads

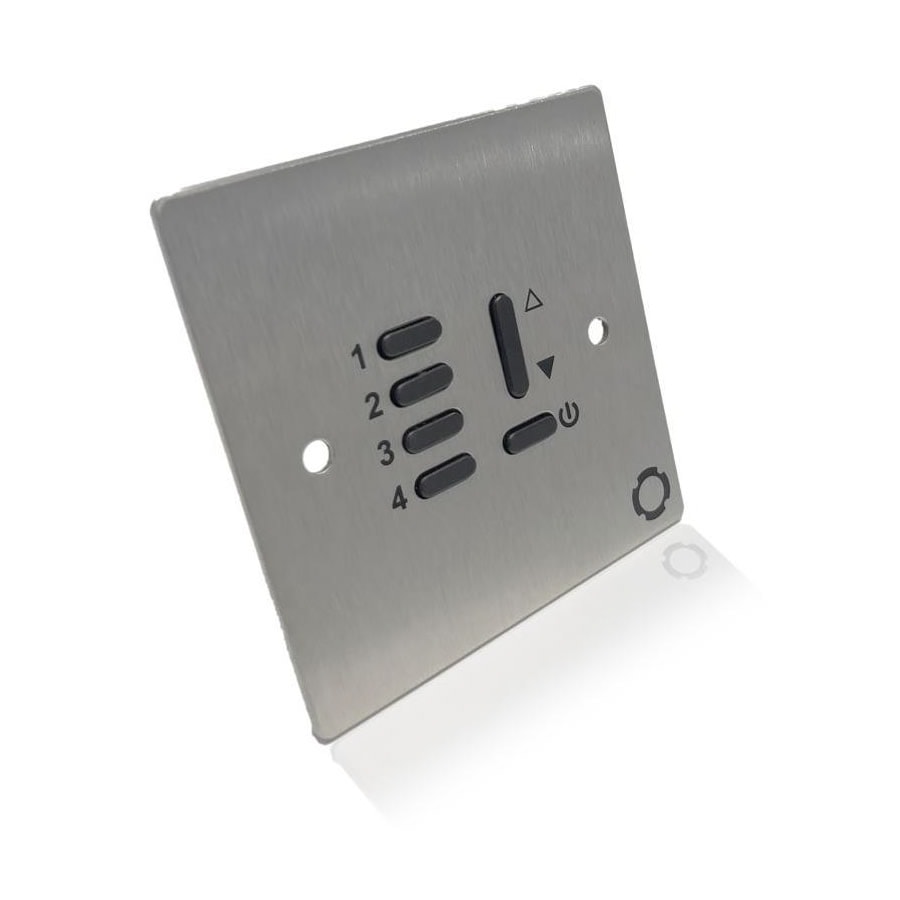

The Prolojik GC604 is an architectural scene setting plate, available in a variety of finishes.
The GC604 has been designed to complement the Prolojik GO ™GL100 lighting control module, connecting directly to the RJ11 inputs of the LCM. Up to 3 scene plates can be used per LCM,
with a maximum of 1 per input port.
Specifications
Operation
To recall up to four programmed scenes.
Increase and decrease the level of a scene by pressing the raise and lower button. This does not affect the stored values of the scenes.
Power button – on / off.
Connections
FCC68 4P4C(RJ11) to GL100 LCM.
Cable not included.
Care and Maintenance
The plate should only be cleaned by gently wiping with a clean damp cloth. Do not use excessive amounts of water, and never use abrasive cleaners, polishes or any solvent based cleaning agents as these may damage the finish and function of the plate. Use of alkali based products, such as lavatory cleaner, will seriously affect the lacquer of brass plates.
Dimensions
86mm x 86mm x 23mm (L x W x H)
Safety
BS EN 62368
Conformity & Standards
EMC emissions: EN 61000-6-3.
EMC immunity: EN 61000-6-1.
Environment
Storage
Temperature: -10˚c -+60˚c.
Humidity: 0% – 90% non-condensing.
In Use
Temperature: 0˚c -+40˚c.
Humidity: 10% – 90% non-condensing.
Installation
Fits standard European single gang backbox 33mm deep or greater.
Metallic front plate must be earthed.
Power Consumption
6mA nominal consumption at 12V.
Technical Data
Features
Scene recall
Scene raise and lower
Direct connection to GL100 controllers
All buttons back lit with blue LED’s
Brushed stainless steel finish
Other finishes available on request
Accessories
GSC05 - 5 meter RJ11 cable
GSC10 - 10 meter RJ11 cable
GSC15 - 15 meter RJ11 cable
