GL100LCM GO ™

The Prolojik GL100 LCM (GO ™) is the next generation lighting control from Prolojik. It takes lighting control from the domain of the specialist engineer and makes it available to installers and end users without compromising on functionality.

The GL100 LCM uses Bluetooth 4.2 and interfaces with the unique designed Prolojik App for fast and simple installation and set up.

Specifications

Features

9 Output lighting control module.
DALI dimming control.
Simple integration and wiring.
Extra low depth for shallow ceiling voids.
Emergency light test instigation.
Screw mounting kit included.

Outputs

9 x independently addressable output groups, supporting up to.
16 DALI drivers.
3 x switchable relay output groups ports 1-4, 5-7, 8 & 9.
Maintained live relay on ports 2 & 8.
1450W total output power rating (160W per port).
100mA DALI supply.

Inputs

3 x low voltage inputs for switch.
3 x port for GS400 sensor or GC604 scene plate.

Networking

Bluetooth 4, 2 and Bluetooth mesh networking

Cabling and connectors

Mains input.
Sensor connectors.
9 x outputs – Wieland GST18i6 x 2 Weiland GST18i5 x 7.

Dimensions

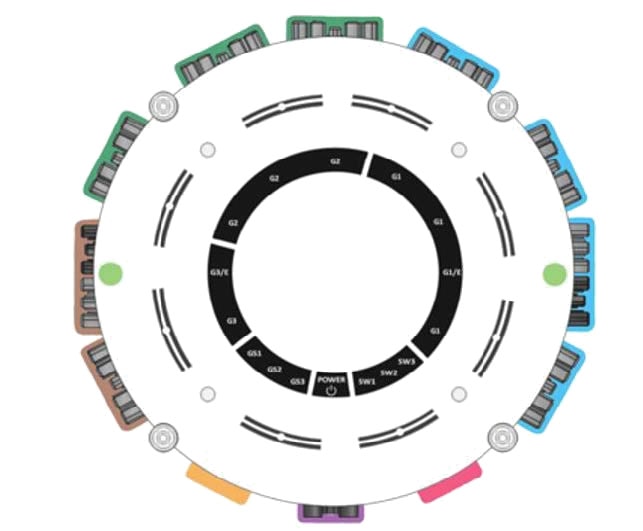

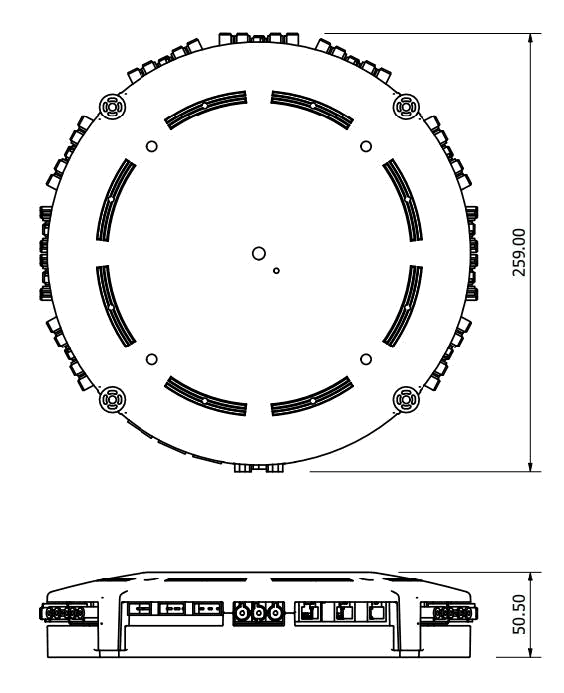

259mm DIA (not including connectors) x 50.5mm deep

Fixings

2 x 9mm fixing holes (suitable for drop rod and surface mounting).
4 x 7mm holes for drop rod or surface mounting.

Safety

BS EN 62368.
Isolation: 4kV between mains and sensors control.

Conformity and Standards

EMC emissions: EN 61000-6-3.
EMC immunity: EN 61000-6-1.
DALI 2.0 compliant.
ARCOM MasterSpec 2013 Classification 29 09 33.

Environment

Storage
Temperature: -10°c -+50°c.
Humidity: 0% – 90% non-condensing.

In Use
Temperature: 0°c -+40°c.
Humidity: 10% – 90% non-condensing.

Mains Input

Mains supply: 230Vac +/- 10%; 50Hz/60Hz.
Connections: Input male socket for PC013F; Weiland GST18i3 female plug; Plug not included.

Parasitic Power Loss

0.16W

Sensor & Switch inputs

Sensor supply: 12Vdc +/- 5%, 30mA.
Sensor isolation: 2kV.
Connection: FCC68 4P4C (RJ11).

Technical Data

Network

Bluetooth 4.2 networking. Auto discoverable with password security.
Android and iOS app for configuration and monitoring.

Power

Wieland GST18i3 female plug.
Prolojik Part: PC013.
Wieland Order: 92.933.0053.1.
16 A 250V rating.

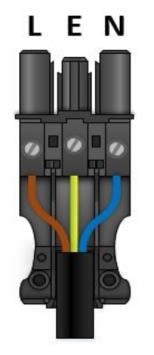

Screw terminal for L, N, E.
Cable cross section area from 0.5 to 2.5mm².

Outputs

7 ports Wieland GST18i5 male plug.
Blue: Prolojik Part: OC015.
Wieland Order: 92.954.4453.0.
16 A 250V rating.

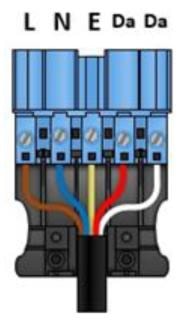

Screw terminal for L, N, E DALI+ and DALI-.
Cable cross sections from 0.5 to 2.5mm².

Outputs

2 ports Wieland GST18i6 male plug.
Black/Blue: Prolojik Part: PC016.
Wieland Order: 34.362.0210.2.
16 A 250V rating.

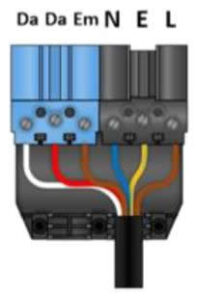

Screw terminal for L, N, E, Em, DALI+ and DALI-.
Cable cross sections from 0.5 to 2.5mm².

Switch Inputs

3 pole 5.08mm pitch plug.
Cable cross section area from 0.5 to 2.5mm².
(3 x Supplied with LCM).

Sensor Inputs

FCC68 4P4C (RJ11) terminations for 3 sensors.
Prolojik sensor cables are available in 5, 10, 15m lengths.
