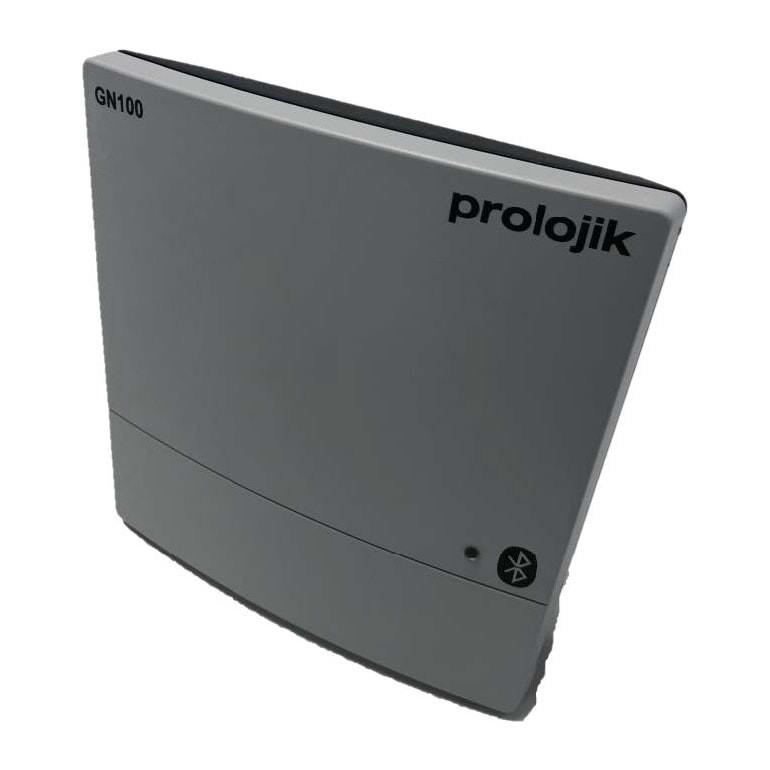

GN100BLE & LON Edge Gateway

The Prolojik GN100 Edge Gateway is a Bluetooth mesh network gateway to collect and collate data from sensors and luminaires and deliver to a cloud based UI or head end PC for smart analytics.

Specifications

System

Operating system: MBed OS / Microsoft IOT.
Architecture: ARM Cortex-A7 + M4.
Memory: 1GB.
Storage: 16GB.

Connectivity

BLE Mesh, LonWorks, 1GB Ethernet DHCP, Wi-Fi 802.11 a/b/g/n/ac.

Bluetooth

Range:
Up to 400 meters bi-directional communication.
Up to 450 meters in beacon only mode.

Certification:

Bluetooth 4.2 qualified single mode module.
QDID: 88957.
Declaration ID: D032786.
Certified to FCC, IESD, MIC, KC and CE regulations.

Radio Power:

Maximum TX output power: +7.5 dbmRX.
Receive Sensitivity: -93 dbm.
Received signal strength indicator (RSSI) with 1-db resolution.

Radio Power Consumption:

TX current consumption:
BLE silicon: 15.6mA (radio only, 0 dbm).
RFX2401C: 27mA (PA/LNA only, +7.5 dbm).
RX current consumption:
BLE silicon: 16.4mA (radio only, 0 dbm)
RFX2401C: 8.0mA (PA/LNA only)

Management and data streaming:

MQTT, Pelion Device Management, Perspective, Custom Restful API Clients.
Supported MQTT/API protocols: TLS or Unencrypted.
MQTT authentication options: Username/password, client certificate or anonymous access.
Certificate exchange: Manual, via a secured ssh session.

MQTT Brokers:

Google IOT.
Hive.
Mosquetto.
AWS.

Safety

EN 60 950.
SELV isolation.

Conformity & Standards

EMC emissions: EN 61000-6-3.
EMC immunity: EN 61000-6-1.
RFI: EN 55 014DALI compliant.
ARCOM MasterSpec 2013 Classification 29 09 23.

Environment

Storage
Temperature: -10°c -+60°c.
Humidity: 0% -90% non condensing.
In Use
Temperature: 0°c -+40°c.
Humidity: 10% -90% non condensing.

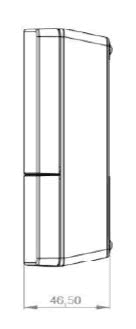

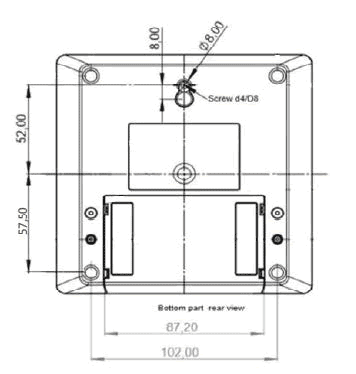

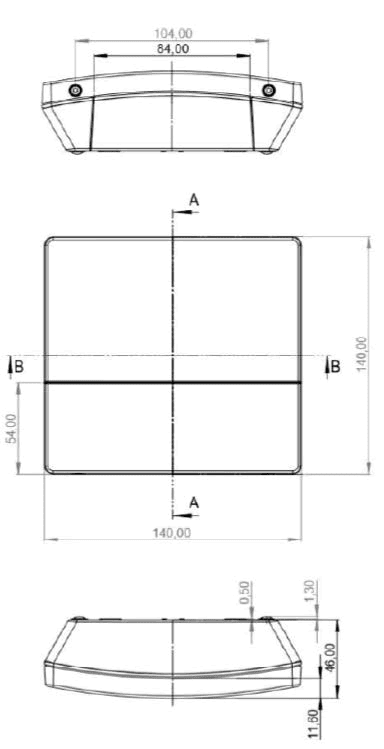

Technical Data
