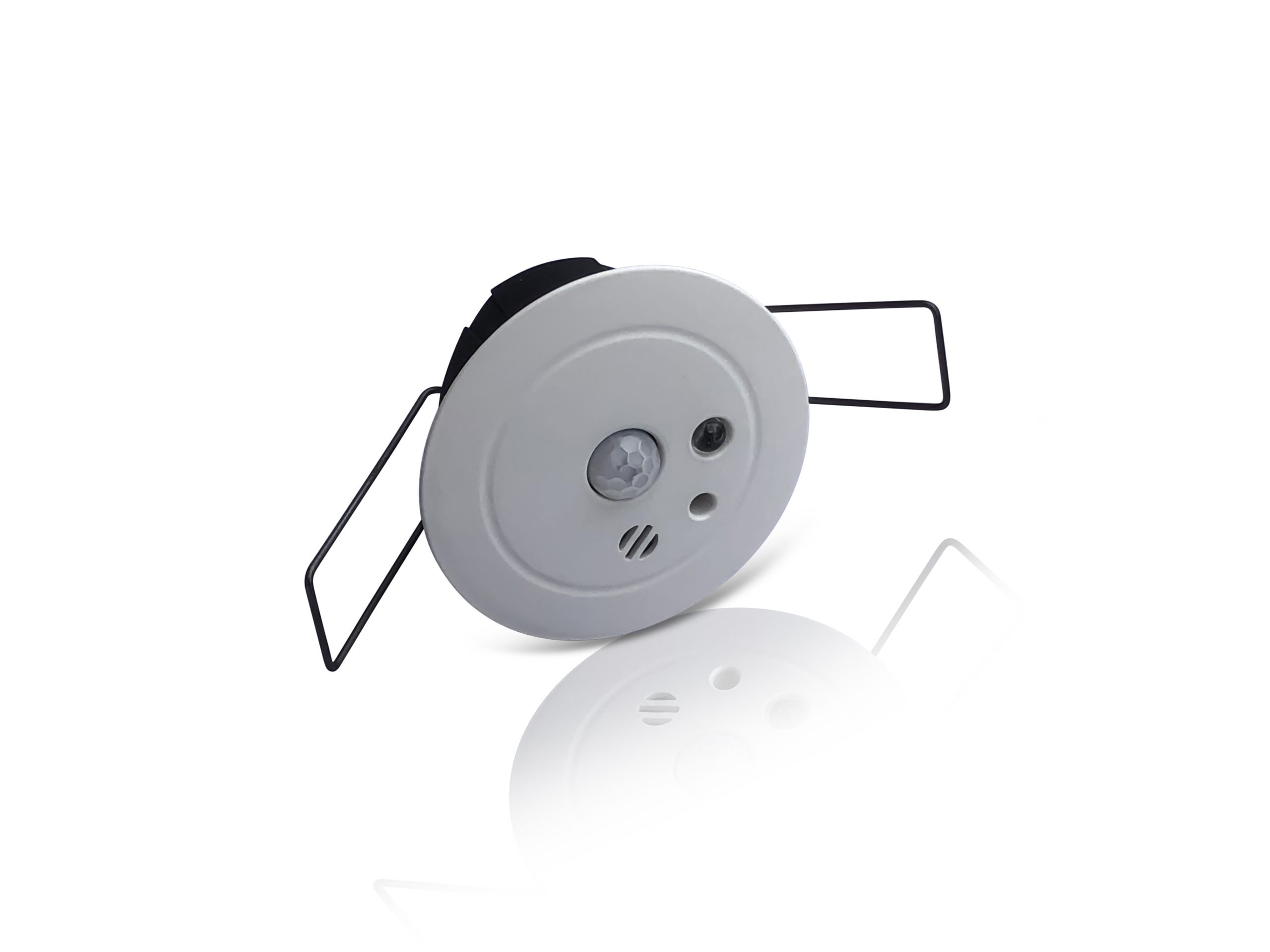

GS400Multi-Function Sensor

The Prolojik GS400 series multi-function sensor delivers high accuracy measurement in a discreet form factor. Prolojik GS400 sensors have been designed to complement the Prolojik GO GL100 lighting control module and are available in a range of lens types and finishes.

Three GS400 sensors can be used per GL100 LCM, limited to one per port.

Specifications

Occupancy

Sensor type: Passive Infra-red, Quad Element.
Field of view: 360°.
Coverage: 2.5 x height of ceiling (7 meters max).

Light Level

Sensor type: Photo-diode.
Accuracy: +/- 5% across range.
Field of View: 360°.

Active Infra-red Receiver

Used for dimming & scene setting

Environment

Storage
Temperature: -10°C to +60 60°C.
Humidity: 0% – 90% non-condensing.

In Use
Temperature: 0 to +56 56°C.
Humidity: 10% – 90% non-condensing.

Conformity & Standards

EMC immunity EN61000-6-1.
EMC emissions EN61000-6-3.
Housing material flame proof ABS.
ARCOM MasterSpec 2013 Classification 29 09 23.
IP rating when installed IP31.

Dimensions

26.2mm deep x 52.2mm diameter.
Weight 21g.
Cut out diameter: 40mm.

Commissioning Aids

Occupancy walk test via LED – single flash.
IR reception from GC310 – triple flash.

Installation

For use with ceiling tiles from 1 to 20 mm thick.
A hole of 40mm diameter should cut in the tile before fitting.
Do NOT fit within one meter of forced air heating or ventilation, or other sources of heat or draughts.
Do NOT obscure sensor by fixtures and fittings.
Do NOT fit on a moving or vibrating surface.

GS400 Connector

FCC68 4PAC RJ11 terminated like-for-like at each end.
Plug not included (Available from Prolojik).

Power Consumption

20mA nominal consumption at 12V

Parasitic Power Loss

0.036W

Colour

White – RAL9003
Black – RAL9005

Technical Data
