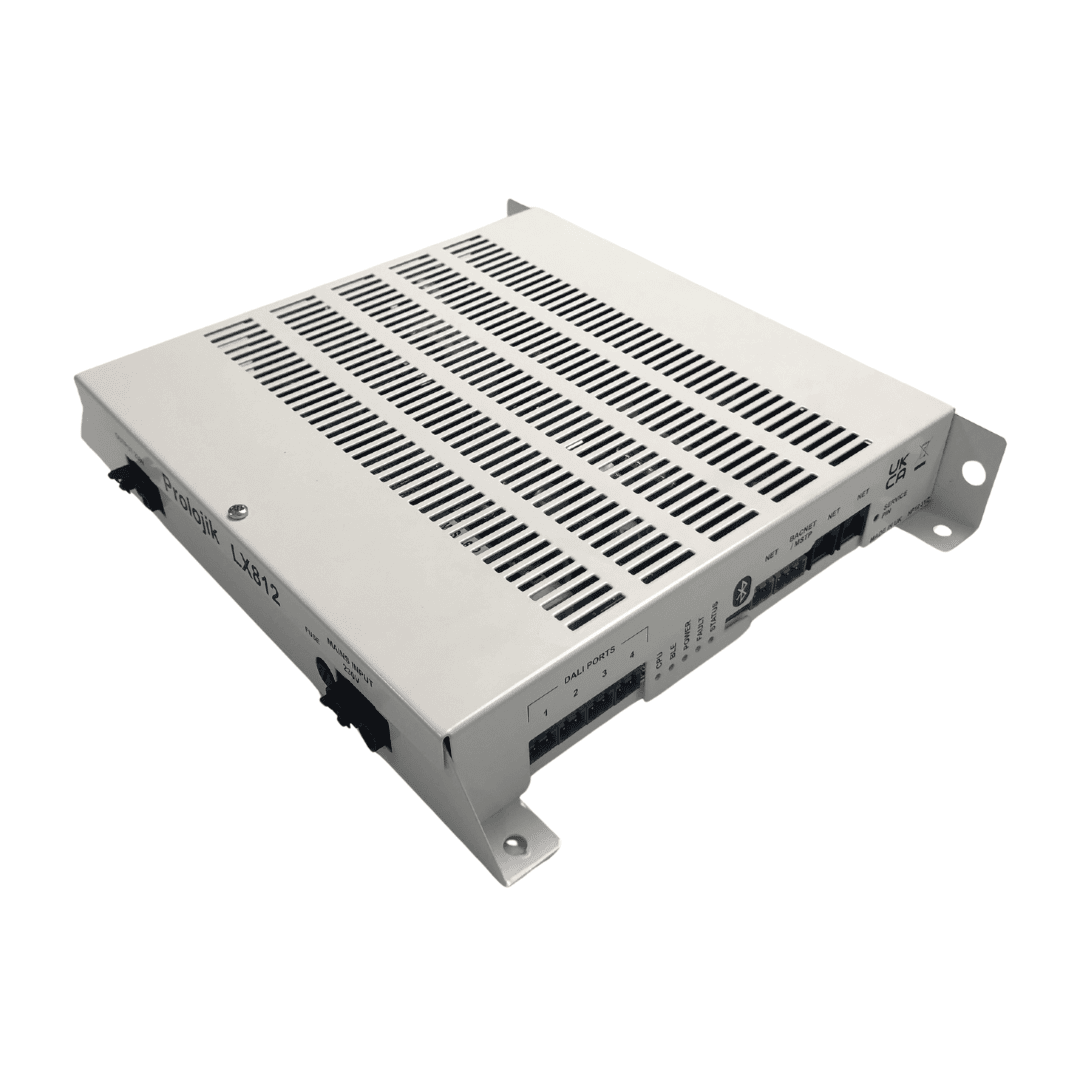

LX81212 Port PoE Switch

Prolojik’s LX812 is an innovative application of standards-based technologies, including: Power over Ethernet, DALI and Bluetooth to enable copper and energy efficiency.
Designed to address the specific needs of commercial CAT A and fitout, education and laboratory developments.

Specifications

Supply

Input Supply AC: 85 264V AC
Input Supply DC: 113 370VDC
AC Frequency: 47 64Hz
Efficiency: 94%
Power factor: >0.94 at 230VAC and >0.98 at 115VAC at full load
Inrush: 3.3A at 230V and 6.6A at 115V
Leakage current: <1.5mA at 240VAC.

Output

Output PoE Voltage: 45.6 50.4VDC. Nominal 48V with internal adjustment.
Output DALI PSU: 15V 250mA
Passive cooling: 250W total ports 1 10 and 84W total ports 10 12
Active Cooling: 400W total ports 1 10 and 120W total ports 10 12

Power consumption

No load: 900mW
No load with low power mode: 400mW

Active cooling

Airflow: 8CFM
Acoustic Noise: 27.3DbA
Power Consumption: 0.7W
Life expectancy: 60,000 Hours at 40 o C

Conformity & Standards

EMC Emission: BS EN/EN55032 (CISPR32) Class B. BS EN/EN61000 3 2, 3,CCC GB17625.1. GB/T9254, EAC TP TC 020
EMC Immunity: BS EN/EN61000 4 2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000 6 2, heavy industry level, EAC TP TC 020
Compliance: Meets requirements of Energy Star and EC Code of Conduct

Circuit Protection

Power: Output short circuit protection: automatic restarts when fault condition is removed
Thermal: Thermal shutdown with automatic recovery if internal temperature exceeds allowable
PoE ports: 1A internal, replaceable fuses per output.
Insulation: Prepared for Class II reinforced insulation Input/output Isolation test voltage: 4000 VAC

Protocol

Luminaires and sensors: IEC62386 DALI and DALI 2 standards
Sensors: Bluetooth LE, EnOcean BLE
Backbone: LonWorks FT 10
Backbone passthrough: BACnet/MSTP

Dimensions

Enclosure: 255mm c 250mm x 47.5mm (L x W x H). 255mm x 300 mm x 47.5mm (L x W x H) including mounting points.
Fixings: 2 x 9mm fixing holes (suitable for drop rod and surface mounting). 4x7mm holes for drop rod or surface mountings
Weight: 2.12Kg

Connection

Mains input: Wieland GST18i3 Female plug (included)
Main output: Wieland GST18i3M (not included)
DALI connecter: Blue 2 pole 5.08mm plug (not included)
LON Network: RJ45 x 2 pins 7 and 8, plus Green 2 pole 5.08,, plug (not included)
BACnet/MSTP: Grey 3 pole 5.08mm plug (not included)
PoE outputs: 12 x FCC68 8×8 ports

Environment

Operating Temperature: 1010°C to +70 70°C
Storage Temperature: 4040°C to +85 85°C
Humidity: 20 to 90% non condensing
Maximum altitude: 5000m
