PC638-D2MScene Setting Plate

The Prolojik PC638-D2M is a DALI 2, 8-button architectural scene setting plate.
All buttons are back lit with blue LED’s and come in multiple finishes.

Specifications

Operation

Scene Plate Operation
Recalling a programmed scene
To recall any of the 8 programmed scenes, simply press the equivalent button, e.g. to select scene 1 press button 1, to select scene 2 press button 2, etc.
Master Scene Raise and Lower
It is possible to manually increase and decrease the level of a scene by pressing the raise and lower button. This does not affect the stored values of the scenes.
Switching the System Off
To turn your lighting off, simply press power button

Connections

2-pole cable clamp (for DA, DA connections)
Use 1.5mm cross section mains rated cable only

Care and Maintenance

The plate should only be cleaned by gently wiping with a clean damp cloth. Do not use excessive amounts of water, and never use abrasive cleaners, polishes or any solvent based cleaning agents as these, may damage the finish and function of the plate. Use of alkali based products, such as lavatory cleaner, will seriously affect the lacquer of brass plates.

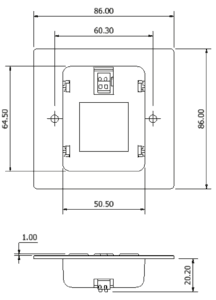

Dimensions

86mm x 86mm x 35mm (L x W x H)

Safety

EN 60 950
SELV isolation

Conformity & Standards

EMC emissions: EN 61000-6-3
EMC immunity: EN 61000-6-1
DALI 2 & NEMA compliant
IEC Standard 62386-102
NEMA Standard NS243-2004
Supports DALI 2 & 3 byte protocol
ARCOM MasterSpec 2013 Classification 29 09 23

Environment

Storage
Temperature: -10°C – +60°C
Humidity: 0% – 90% non-condensing

In Use

Temperature: 0°C – +40°C
Humidity: 10% – 90% non-condensing

Installation

Fits standard single gang backbox 25mm deep or greater
Ensure backbox has horizontal screw mounting aperture only
Metallic front plate must be earthed

Power Consumption

4mA nominal consumption at 15V DALI bus voltage

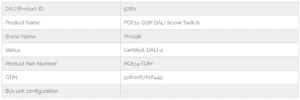

Technical Data

Digital Illumination Interface Alliance
