PC734-D2M

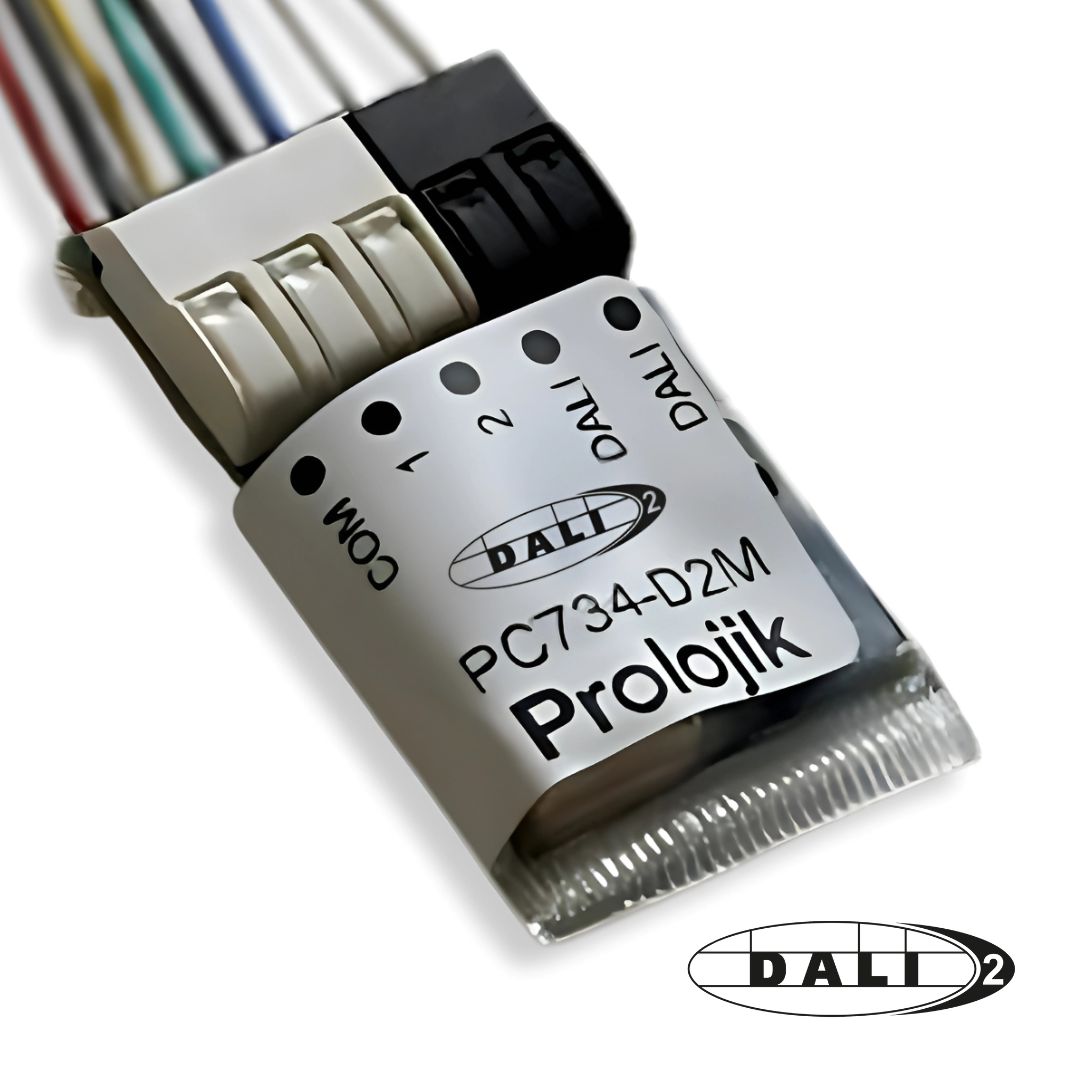

The Prolojik PC734-D2M is a compact DALI 2 addressable interface for the connection of light switches. Either retractive or latching switches may be used.
Designed for easy installation, the Prolojik PC734-D2M switch interface has been developed to complement Prolojik addressable lighting control modules and hubs.
The interface has been designed for minimum installed depth, making it ideal for installation into a switch backbox.

Specifications

Connections

2-pole terminals (for DA, DA connections)
3-pole switch terminals – 2 switches:
COM / 1 / 2
COM / 3 / 4

Dimensions

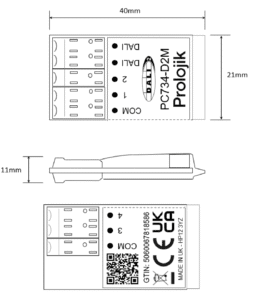

40mm x 21mm x 11mm (L x W x H)

Conformity & Standards

EMC immunity EN 50082-1
EMC emissions EN50081-1
DALI 2 & NEMA compliant
IEC Standard 62386-102
NEMA Standard NS243-2004
Supports DALI 2 & 3 byte protocol

Environment

Storage
Temperature: -10°C – +60°C
Humidity: 0% – 90% non-condensing

In Use

Temperature: 0°C – +56°C
Humidity: 10% – 90% non-condensing

Installation

Requires 35mm deep backbox or greater
Switch line should be kept to an absolute minimum, and must be below 2 metres
Switch line requires screened cable
DALI is a non isolated bus.
Switches used with this device must therefore, be mains rated

Power Consumption

6mA nominal consumption at MAX17V DALI bus voltage

As standard the PC734 is supplied with coloured cables – 100mm long 0.5mm²

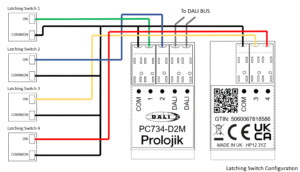

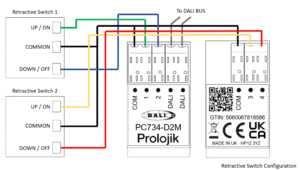

Common : Black
1(on/up) : Green
2(off/down) : Blue
3(on/up) : Yellow
4(off/down) : Red
DALI/ DALI : Grey / White

Cables are easily removed if not required.
If cables are not being used – please ensure these are removed.

Technical Data

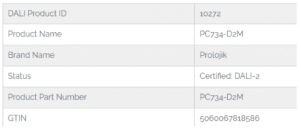

Digital Illumination Interface Alliance
