Features
Connection of 2 centre-biased two way and off retractive switch or 4 latching switches.
Remote addressing.
Fits 35mm deep switch backbox.
Push fit terminals for quick connection.
Accessories
PC101 - IR Remote Control.
Downloads

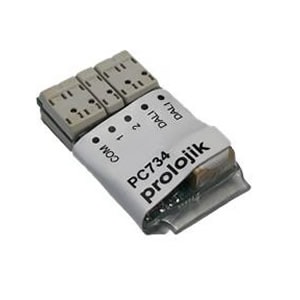

The Prolojik PC734 is a compact DALI addressable interface for the connection of light switches. Either retractive or latching switches may be used. Designed for easy installation, the Prolojik PC734 switch interface has been developed to complement Prolojik addressable lighting control modules and hubs.
The interface has been designed for minimum installed depth, making it ideal for installation into a switch backbox.
Specifications
Connections
2-pole terminals (for DA, DA connections).

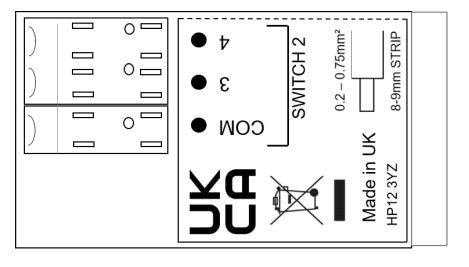

3-pole switch terminals –2 switches:
COM / 1 / 2.
COM / 3 / 4.
Use MAX 0.75mm2 cross section cable.

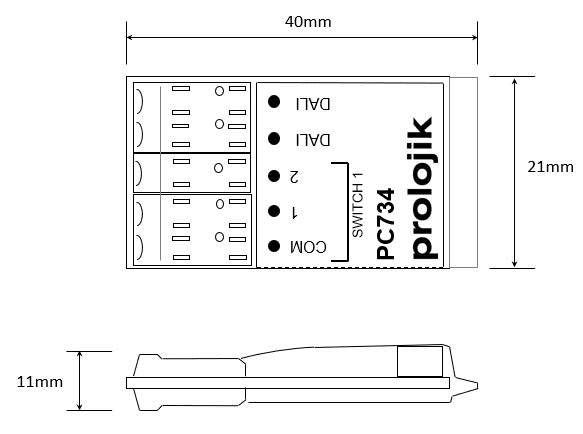

Dimensions
40mm x 21mm x 11mm (L x W x H).
Conformity & Standards
EMC immunity EN 50082-1.
EMC emissions EN50081-1.
DALI & NEMA compliant.
IEC Standard 62386-102.
NEMA Standard NS243-2004.
Supports DALI 2 & 3 byteprotocol.
Environment
Storage
Temperature: -10°C -+60°C.
Humidity:0% -90% non-condensing.
In Use
Temperature: 0°C -+56°C.
Humidity:10% -90% non-condensing.
Installation
Requires 35mm deep backbox or greater.
Switch line should be kept to an absolute minimum, and must be below 2 metres.
Switch line requires screened cable.
DALI is a non isolated bus.
Switches used with this device must therefore be mains rated.
Power Consumption
4mA nominal consumption at 15V DALI bus voltage.
Technical Data

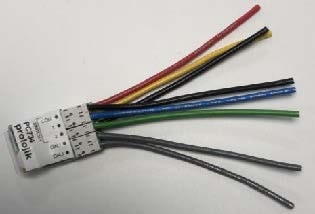

As standard the PC734 is supplied with coloured cables –100mm long 0.5mm2.
| Common | Black |
| 1 | Green |
| 2 | Blue |
| 3 | Yellow |
| 4 | Red |
| DALI | Grey |
Cables are easily removed if not required.
If cables are not being used – please ensure these are removed.
