Features
Live and Neutral through-wire terminal (In-Out).
Bluetooth mesh networking.
Low profile form-factor.
Automatic device discovery.
DALI-2 Compliant.
Accessories
PS580 - BLE Track Sensor.
GN100 - BLE Edge Gateway.
Downloads
The PL172 is a luminaire mounted BLE to DALI DT8 interface, built to achieve wireless controls to a luminaire fitting. The PL172 is designed to complement the PS58x sensor range, receiving commands on the BLE mesh, which are then relayed over DALI to the LED driver in the fitting. DT8 or DALI Type 8, also known as DALI 209, is a DALI compatible device which allows the user to change light colour, colour temperature and intensity to their preference, within the same fixture to achieve tuneable white.
The PL172 also interfaces with the GN100 GO™Edge Gateway to collect and export data to the cloud.
Specifications
Wireless Specification
Bluetooth®: V4.2 Single Mode.
Frequency: 2.402 -2.480GHz.
Max transmit Power: 4dBm.
Receive Sensitivity: -91dBm (typical).
Whisper mode: Down to -55dBm (transmit).
Link Budget: 95dB (@1Mbps).
Raw Data Rates: 1Mbps (over the air).
Approvals
Bluetooth®: End Product Listing (EPL).
Conformance FCC/IC/CE/MIC.
Connections
6-way push-fit input 1.5mm (16AWG) recommended
Mains Input
Mains Supply: 230Vac +/–10%; 50Hz
DALI Supply
20mA DALI current output
DALI-2 Compliant
Dimensions

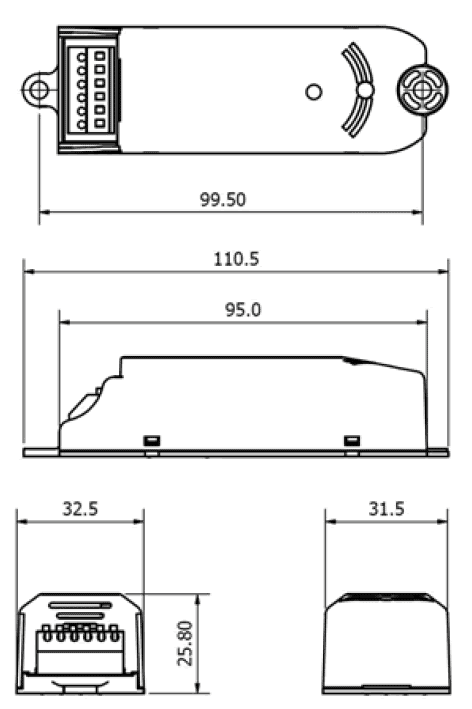

110.5mm x 31.5mm x 25.8mm (L x W x H)
Safety
EN 62368-1
Isolation: 4kV between mains & network
Conformity & Standards
EMC emissions: EN 61000-6-3
EMC immunity: EN 61000-6-1
Housing material flame-proof ABS
ARCOM MasterSpec 2013 Classification 29 09 23
Environment
Storage
Temperature: -10°C –+60°C.
Humidity: 0% – 90% non-condensing.
In Use
Temperature: 0°C –+56°C.
Humidity: 10% – 90% non-condensing.
Technical Data
Features
Live and Neutral through-wire terminal (In-Out).
Bluetooth mesh networking.
Low profile form-factor.
Automatic device discovery.
DALI-2 Compliant.
Accessories
PS580 - BLE Track Sensor.
GN100 - BLE Edge Gateway.
