Features
8 x 16A mains rated outputs.
3 phase mains capable controller.
5 dedicated switch inputs.
Industry standard DIN M36 form factor.
Downloads

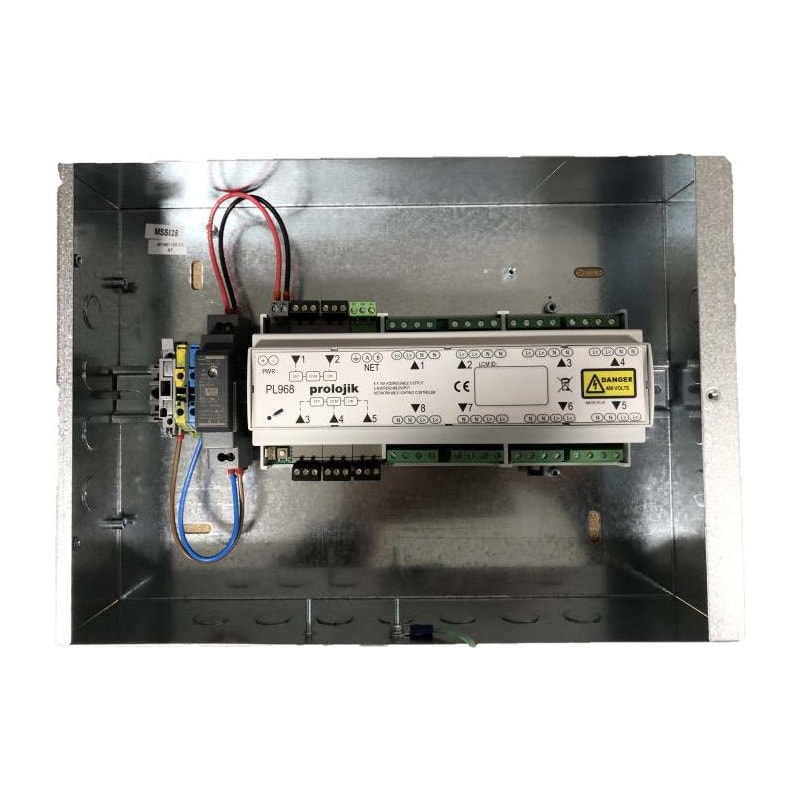

The PL368 LON 8 x 16A relay, 5 input control module (PL968) with PSU in an enclosure. Providing 8 individually addressable, switched outputs, panelised into a robust metal enclosure.
Designed for optimum form factor the controller features a LonWorks interoperable solution and industry standard DIN form factor.
Specifications
Features
8 circuit lighting control module
5 dedicated switch inputs
LonWorksTM Interoperable solution
Simple integration and wiring
DIN M36 form factor
Outputs
8 x independently controllable outputs.
Rising cage screw terminals supporting up to 4mm cross sectional cables. Terminals for live in, live out and neutral pass through.
Networking
LonWorksTM network TP/FT 10 (Capacitor Decoupled).

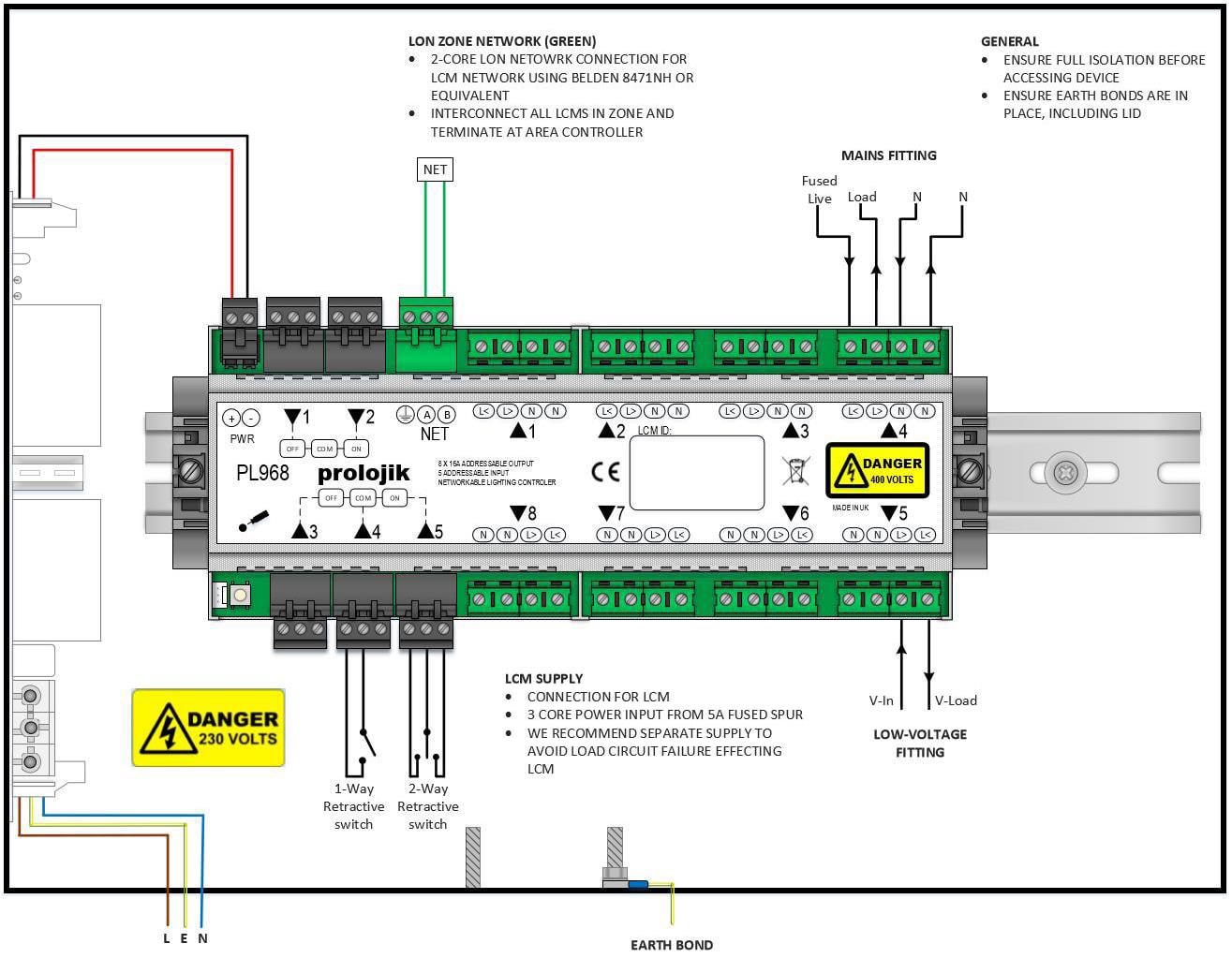

Terminations.
Mains input (grey).
LonWorksTM interface (green).
8 x Outputs connectors.
5 x switch connections (black).
Mains Supply
100 230VAc, 47 63 Hz.
5A unswitched fused spur (1A minimum).
Dimensions
355 mm x 260 mm x 80 mm (LxWxH).
Fixings
Spring retractive DIN rail mounting clip.
DIN EN50022.
Safety
EN 6 2368 1.
Isolation: 4kV between mains & network.
Conformity & Standards
Generic emission: EN 61000 6 3.
Generic immunity: EN 61000 6 1.
LonMarkTM compliant.
ARCOM MasterSpec 2013 Classification 29 09 43.23.
Environment
Storage
Temperature: 10°c +60°c.
Humidity: 0% 90% non condensing.
In Use
Temperature: 0°c +40°c.
Humidity: 10% 90% non condensing.
Technical Data
Features
8 x 16A mains rated outputs.
3 phase mains capable controller.
5 dedicated switch inputs.
Industry standard DIN M36 form factor.
