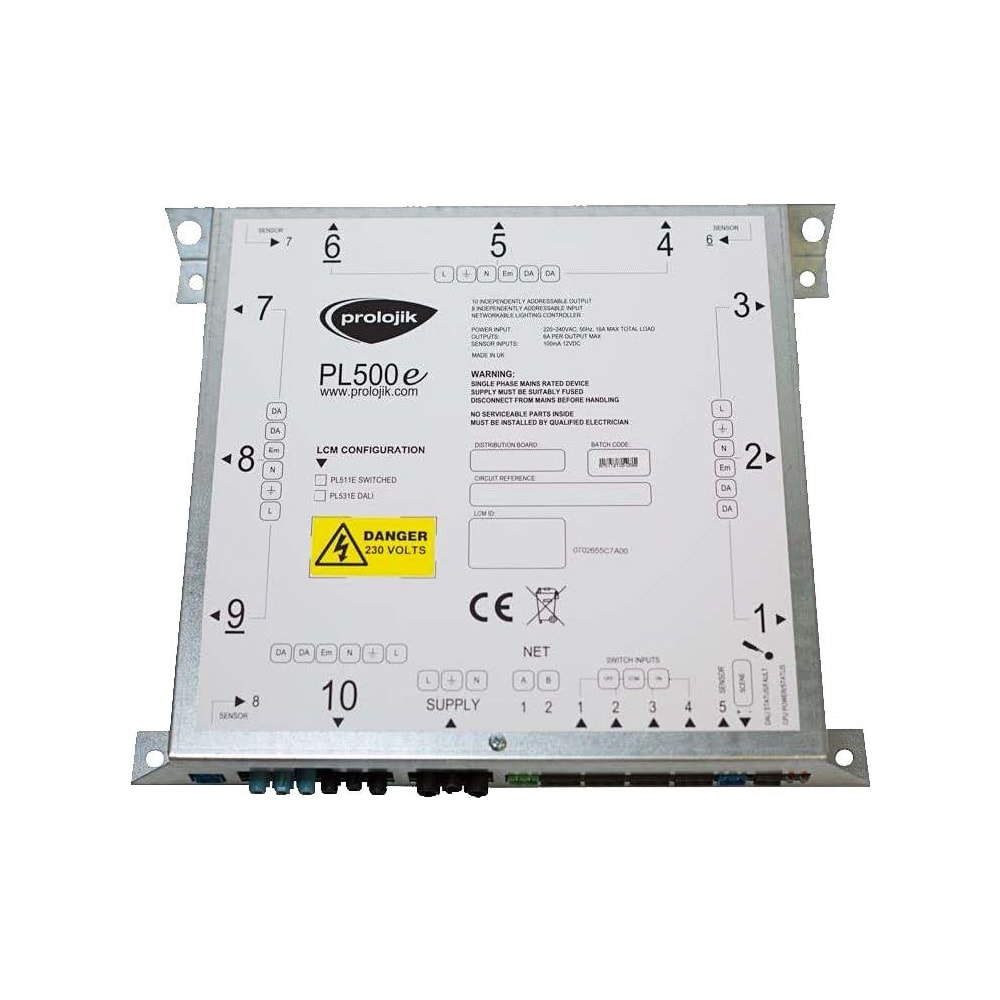

PL531E10 Port DALI LCM

The PL531E is a 8 input/10 output, pluggable Networked DALI lighting control module.

Specifications

Features

10 circuit lighting control module.
Integral DALI master (mac 45 DALI addresses).
Digital control (DALI –PL531E).
LonWorks^™Interoperable solution.
Simple integration and wiring.
Extra low depth for shallow ceiling voids.

Outputs

10 x independently addressable outputs.
Emergency light test instigation.

Inputs

4 dedicated switch inputs for retractive or latching switches.
4 DALI ports for PS432 DALI sensors or PC630 DALI scene plates.
(Max 10 x P432 sensors).

Networking

LonWorks^™network TP/FT-10 (Capacitor decoupled) DALI on output port pins 5 and 6 (PL531)

Terminations

Mains input LonWorks^™interface.
Switch connections.
DALI Bus connections.
10 x outputs.

Dimensions

255mm c 250mm x 47.5mm (L x W x H).
255mm x 300 mm x 47.5mm (L x W x H) including mounting points.

Fixings

2 x 9mm fixing holes (suitable for drop rod and surface mounting).
4x7mm holes for drop rod or surface mounting.

Safety

EN 60 950 Isolation: 4kV between mains and sensors / network / digital control

Conformity & Standards

EMC emissions: EN 61000-6-3.
EMC immunity: EN 61000-6-1.
RFI: EN 55 014.
LonMark^™compliant DALI compliant.
ARCOM MasterSpec 2013 Classification 20 09 43.23.

Environment

Storage
Temperature: 10°C –+60°C.
Humidity: 0% – 90% non condensing.

In Use
Temperature: 0°C –+40°C.
Humidity: 10% – 90% non-condensing.

Mains Input

Mains supply: 230Vac +/- 10%; 50Hz.
Connection: Input male socket for PC013 Wieland GST18i3 female plug

Plug not included (Available from Prolojik)

Outputs

Connections: Output female socket for PC016 Wieland GST18i3 female plug .
Switching capability: 1000VA per output maximum .
Maximum total load: 16A total peak load – refer to Prolojik for load types.
Emergency maintained capacity: 1000VA total maximum.
Digital dimming: 250mA maximum 15Vdc (PL531E).
Maximum 64 DALI addresses per PL531E.

DALI Ports & Switch Inputs

Scene supply: L12Vdc +/- 5%, 30mA sensor isolation: 2kV.
Plugs not included (Available from Prolojik).

Power Consumption

At rest: 0.6W.
Fully loaded: 10W.

Technical Data

Network

2 pole rising clamp 5.08mm pitch.
Captive screw CTB9200A Series.
Cable diameters 0.5 to 2.5mm. CE and UL approved.
Network plugs must be Prolojik Part: PC062.
Phoenix Contact MSTB 2.5/2-ST-5,08.
Phoenix Contact Part: 1757019; Or for T connection use Prolojik Part: PC062T.
Phoenix Contact TMSTBP 2.5/2-ST-5,08.
Phoenix Contact Part: 1853010; Or Equal and Approved
Beldon 8471NH or equivalent to be used for network.
If in doubt, please contact Prolojik Limited.

Power

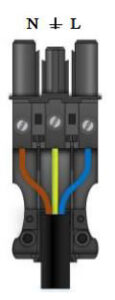

Wieland GST18i3 female plug.
Prolojik Part: PC013.
Wieland Part: GST 18i3 F B2 Z.
Wieland Order: 92.933.0053.1.
16 A 250V rating Screw clamp connections for L,N,E Cable cross section area from 0.5 to 2.5mm².

Switch Inputs

3 Pole MSTB 5.08mm plug.
Prolojik Part: PC003.
Metway Part: 121A1113.
Terminations for ON/UP, OFF/DOWN and COMMMON.
Cable cross section area from 0.5 to 2.5mm².

DALI Ports

2 Pole MSTB 5.08mm plug.
Prolojik Part: PC032.
Metway Part: 121A1112.
Terminations for DA and DA.
Cable cross section area from 0.5 to 2.5mm²

Output (DALI/Emergency)

Wieland GST18i6 male plug.
Black/Blue.

Prolojik Part: PC016.
Wieland Part: GST18i6 S.
S1NZR1V Wieland Order: 92.968.0158.1.

16 A 250V rating Screw terminal for L, N, E, Em, DA and DA Cable cross section area from 0.5 to 2.5mm²

Output (Switched)

Wieland GST18i3 male plug.
Wieland Part: GST18i3 F S2 Z.
Wieland Order: 92.934.0053.1.
16 A 250V rating Screw terminal for L,N and E Cable cross section area from 0.5 to 2.5mm².
