Features
DALI trailing edge phase dimming.
315W Max load.
Short Circuit protection & overload protection.
Downloads

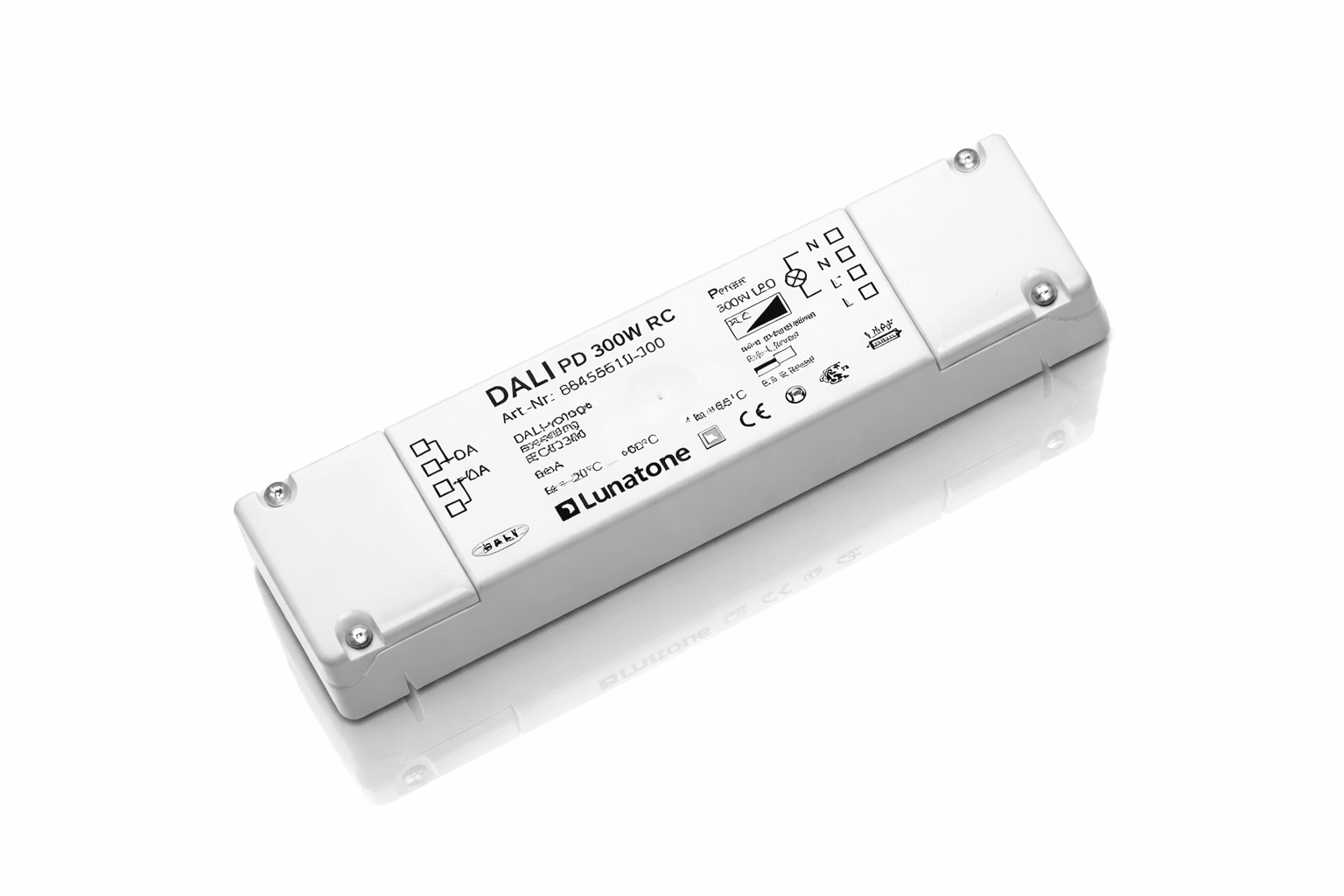

The PL733 offers a flexible DALI controlled trailing edge phase dimming solution. Electronic trailing edge dimmer for incandescent lamps, electronic transformers and line voltage LED lamps.
Specifications
Input: L, N
input type: mains
marking terminals: L, N
rated input voltage: 230Vac
input voltage frequency: 50Hz
max. input power: 300W
Input: DA, DA
input type: DALI, supply
marking terminals: DA, DA
input voltage range: 9,5V .. 22,5V
max. current consumption DALI: 6mA
number of DALI addresses: 1
Output: L’, N
output type: trailing/leading edge phase cut of mains
marking terminals: L’, N bzw.
output voltage: 230Vac, like input
phase cut angle: 0°-180°
output voltage frequency: 50Hz, like input
max. output current: 1.45A Eff ac
load range: 10-300W
max. length between device and luminaire: 50m
Insulation data:
impulse voltage category: II
pollution degree: 2
rated insulation voltage: 250V
insulation DALI (DA+,DA-) / (L/N/L’): reinforced isolation
insulation test voltage: 3000Vac
Environmental conditions:
storing and transportation temperature: -20°C .. +75°C
operational ambient temperature: -20°C .. +60°C
Rel. humidity, none condensing: 15% … 90%
General data:
dimensions (l x w x h): 120x50x22mm
mounting: remote ceiling, integration in protection class II devices
rated max. temperature tc: 65°C
expected life time @tc: 50.000 h
protection class: II in intended use
protection degree housing: IP40
protection degree terminals: IP20
Technical data:
Features
DALI trailing edge phase dimming.
315W Max load.
Short Circuit protection & overload protection.
