Features
1x64 DALI slave devices.
Provides benefits of DALI control & monitoring.
DALI bus short circuit protection.
LED indication of power, network, DALI.
Override on, off, dim buttons.
Downloads

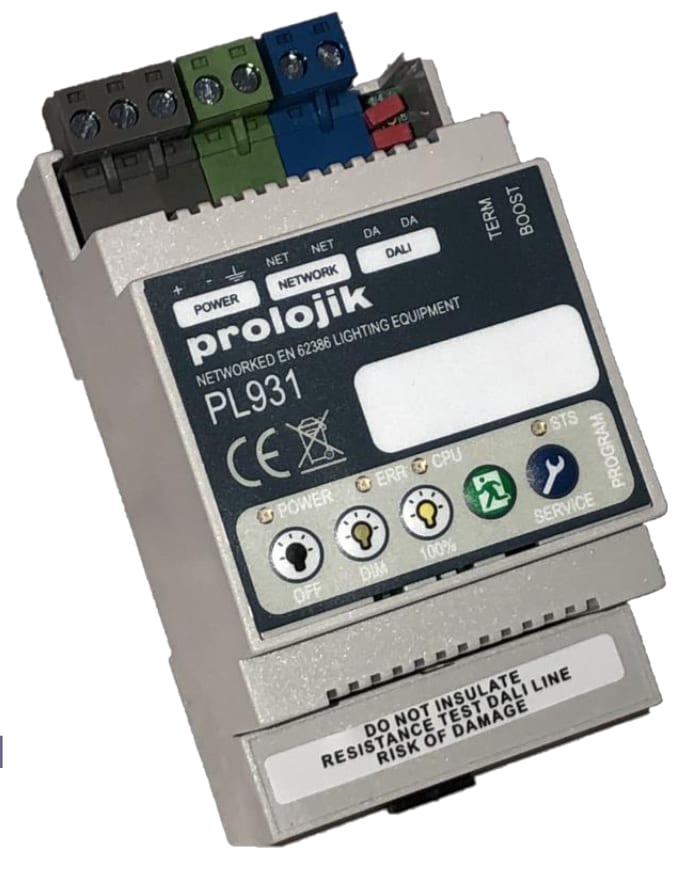

The Prolojik PL931 encapsulates the networking benefits of Prolojik’s lighting solutions and the installation benefits of DALI.
The Prolojik PL931 raises the DALI functionality to a new level, providing unparalleled device and control density. The controllers can be configured for control of up to 1x64 DALI ballasts, DALI emergency inverters, DALI sensors, DALI scene setting plates or DALI switch interfaces.
Specifications
Features
250 mA drive per DALI bus.
1×64 DALI addresses.
Fully networked solution.
Fail-safe mode to occupied state.
LED indication for power, network, DALI.
Override on, off, dim buttons.
Networking
LonWorksTM network TP/FT-10 (Capacitor Decoupled).
Connections
15V DC Input.
DALI Bus Output.
LonWorksTM Interface.

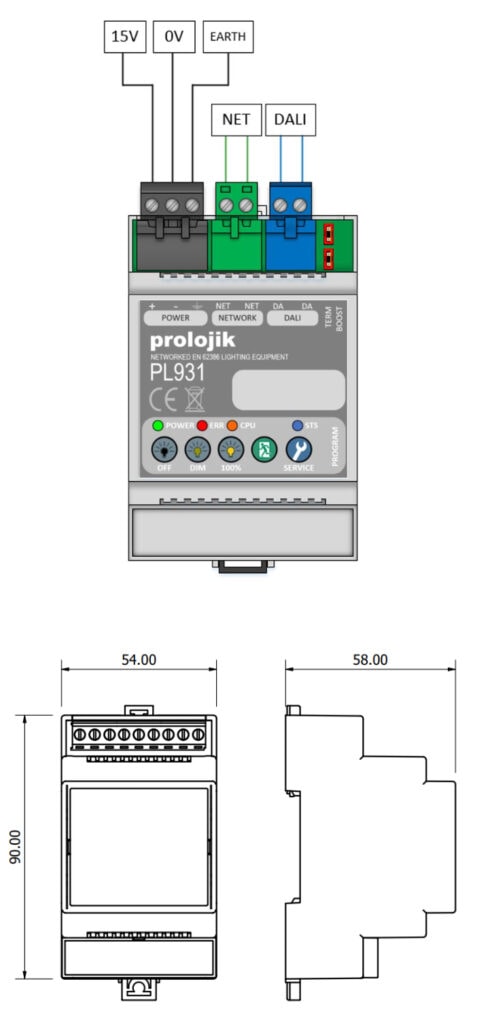

Dimensions
54mm x 90mm x 58mm (L x W x H).
Override Buttons
Broadcast off.
Broadcast on.
Broadcast dim.
Safety
EN 60 950.
Conformity & Standards
Generic emission: EN 50 081 part 1.
Generic immunity: EN 50 082 part 1.
RFI: EN 55 014.
LonMarkTM compliant.
DALI compliant.
ARCOM MasterSpec 2013 Classification 29 09 33.
Environment
Storage
Temperature: -10°C -+60°C.
Humidity: 0% -90% non-condensing.
In Use
Temperature: 0°C -+40°C.
Humidity: 10% -90% non-condensing.
Power Input
15V DC Power Supply.
Output
DALI bus output or outputs (for 64 DALI addresses each).
Output isolation: 4kV.
Connection: Rising clamp screw terminal –cable diameters to 2.0mm2.
Technical Data
Features
1x64 DALI slave devices.
Provides benefits of DALI control & monitoring.
DALI bus short circuit protection.
LED indication of power, network, DALI.
Override on, off, dim buttons.
