8 x 16A mains rated outputs.
3 phase mains capable controller.
5 dedicated switch inputs.
Industry standard DIN M36 form factor.

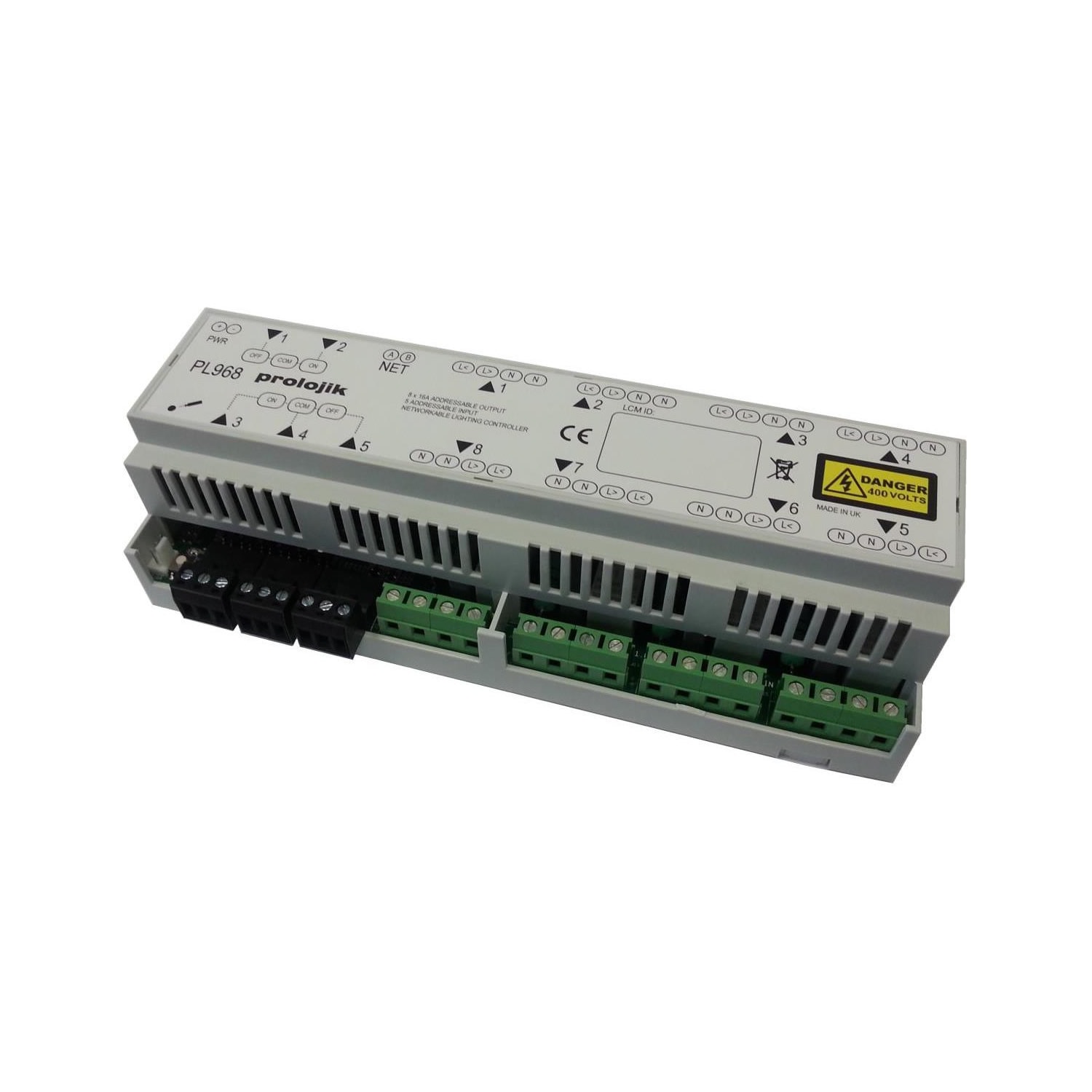

The PL968 LON 8 relay control module, provides 8 individually addressable, switched outputs. Designed for optimum form factor the controller features a LonWorks interoperable solution and industry standard DIN form factor.
8 circuit lighting control module.
5 dedicated switch inputs.
LonWorksTM Interoperable solution.
Simple integration and wiring.
DIN M36 form factor.
8 x independently controllable outputs.

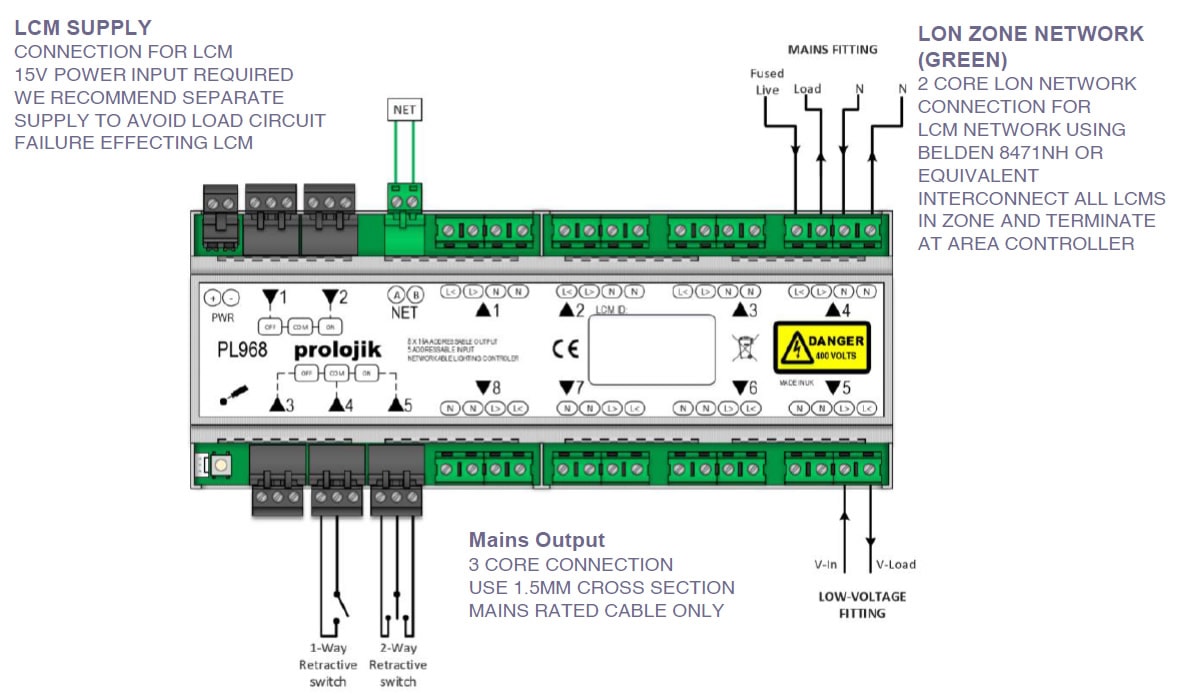

Rising cage screw terminals supporting up to 4mm cross sectional cables. Terminals for live in, live out and neutral pass through.
LonWorksTM network TP/FT 10 (Capacitor Decoupled).
Mains input (grey).
LonWorksTM interface (green).
8 x Outputs connectors.
5 x switch connections (black).
Requires 15Vdc power supply.
208 mm x 90 mm x 60 mm (LxWxH)h.
Spring retractive DIN rail mounting clip.
DIN EN50022.
EN 6 2368 1.
Isolation: 4kV between mains & network.
Generic emission: EN 61000 6 3.
Generic immunity: EN 61000 6 1.
LonMarkTM compliant.
ARCOM MasterSpec 2013 Classification 29 09 43.23.
Storage
Temperature: 10°c +60°c.
Humidity: 0% 90% non condensing.
Temperature: 0°c +40°c.
Humidity: 10% 90% non condensing.
