Features
Lighting controls system scheduler.
Browser based management interface.
Power, network and network traffic status indication.
Simple integration and wiring.
Fully distributed intelligence.
LAN / Intranet connection.
Laptop connection point.
Downloads

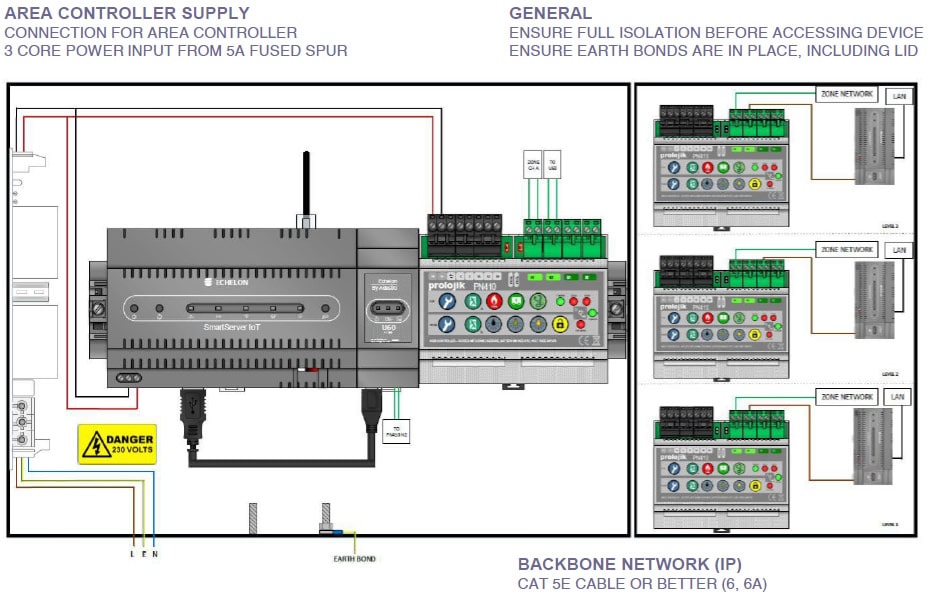

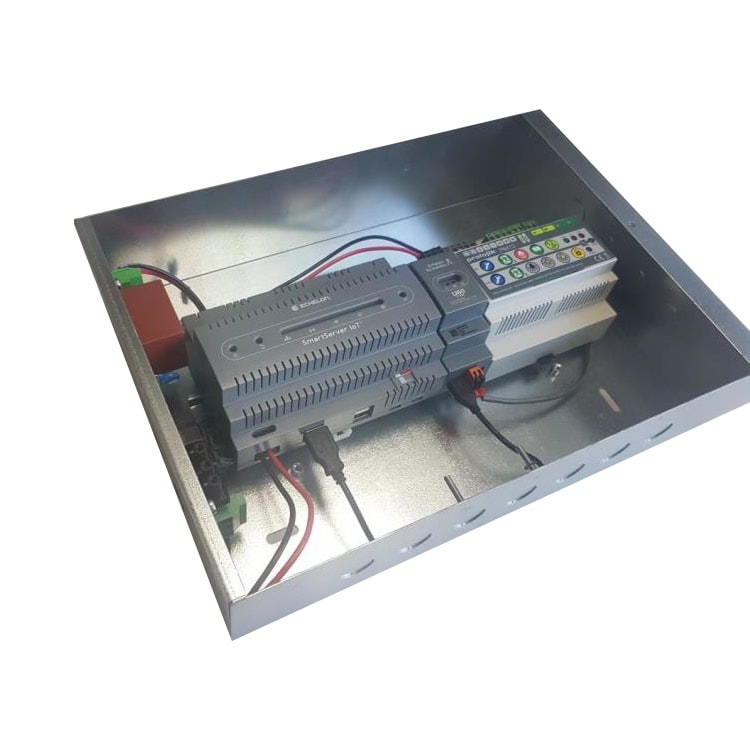

The PN541 is an IP router hub that allows for the connection of Prolojik Lon networks to larger building management infrastructures. The PN541 offers a hugely flexible, feature packed area control device.
Specifications
Inputs
3 x volt free inputs.
Cage clamp terminals cable cross.
sections from 0.5 to 2.5mm2.
LAN Connection
2 x RJ-45 jacks for WAN and LAN, including LON IP-70 and IP-852, BACnet/IP and Modbus TCP.
Default IP: 192.168.1.222.
Subnet mask:255.255.255.0.
Homepage: http://<hostname>.local OR http:// 192.168.1.222.
Network
LonWorksTM network TP/FT-10 (Capacitor decoupled).
LonWorksTM Interoperable solution.
Cable cross sections from 0.5 to 2.5mm2.
Beldon 8471 twisted pair unscreened or equivalent.
Network Inputs
2 x RJ45 Network inputs.
4 x USB Type A local IoT network and I/O interfaces.
1 x Micro-B USB console port.
Dimensions
355 mm x 260 mm x 80 mm (LxWxH).
Safety
EN 62368-1.
Isolation: 4kV between mains and sensors.
Conformity and Standards
Generic emission: EN 61000-6-3.
Generic immunity: EN 61000-6-1.
EN 61000-4-5: 2006.
LonMarkTM compliant.
FCC, CE, IC, and CCC.
EN55022 Class BEN55024.
Environment
Storage
Temperature: 0°c -40°c.
In Use
Temperature: 0°c -40°c.
Mains Input
100 -230VAC, 47 -63 Hz.
5A unswitched spur.
Technical Data
Features
Lighting controls system scheduler.
Browser based management interface.
Power, network and network traffic status indication.
Simple integration and wiring.
Fully distributed intelligence.
LAN / Intranet connection.
Laptop connection point.
