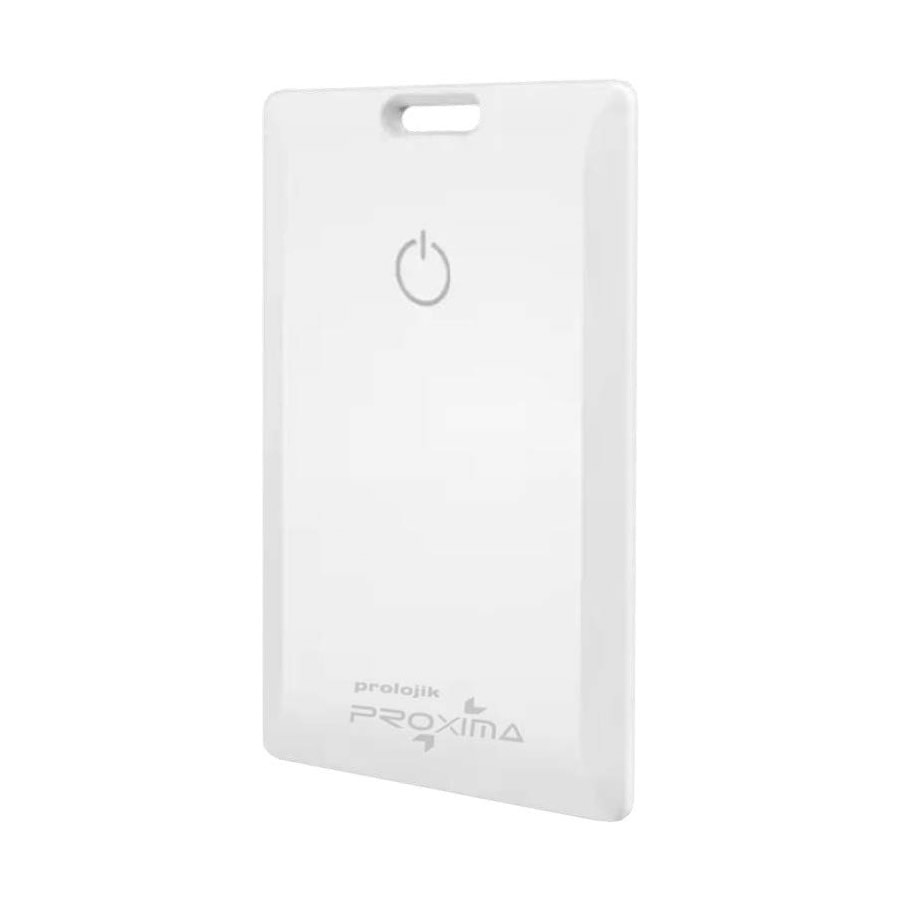

The PS180 is a flexible lanyard sensor, RFID tag, capable of measuring movement for user tracking purposes. The sensor reports its status using BLE advertising telegrams. These BLE messages can be retrieved by a PS462 Proxima sensor and sent to a head-end PC for space analytics.
Specifications
Wireless Specification
Bluetooth®: BLE advertising.
Frequency: 2.4GHz.
Max transmit Power: 40dBm.
Interval: 100ms to 5000ms.
Range: 100m.
Power
Battery: Li-Poly (non-replaceable).
Battery life: 3 years.
Capacity: 550mAh.
Environment
Operating temperature: -20°C to +60°C.
Conformity & Standards
EMC emissions: EN 61000-6-3.
EMC immunity: EN 61000-6-1.
Housing material flame-proof ABS.
Dimensions

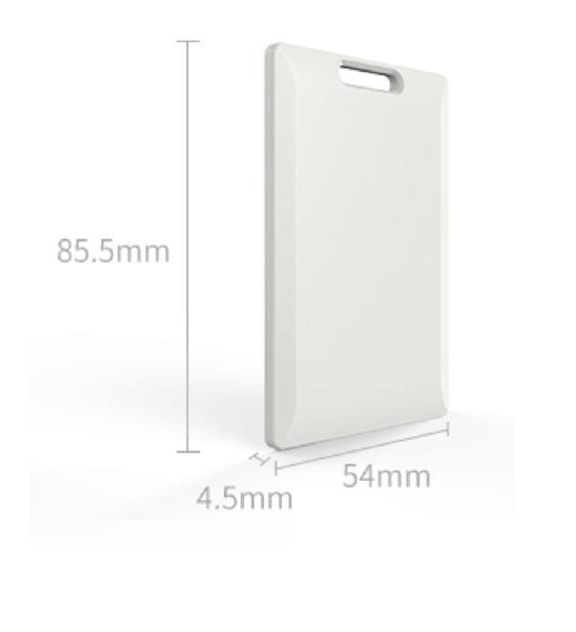

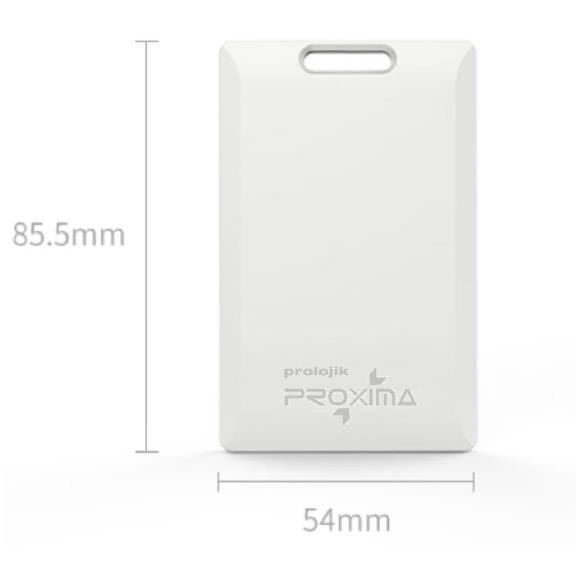

85.5 x 54 x 4.5mm (H x W x D)
Weight
15.5g
Installation
For lanyard (lanyard not included)
