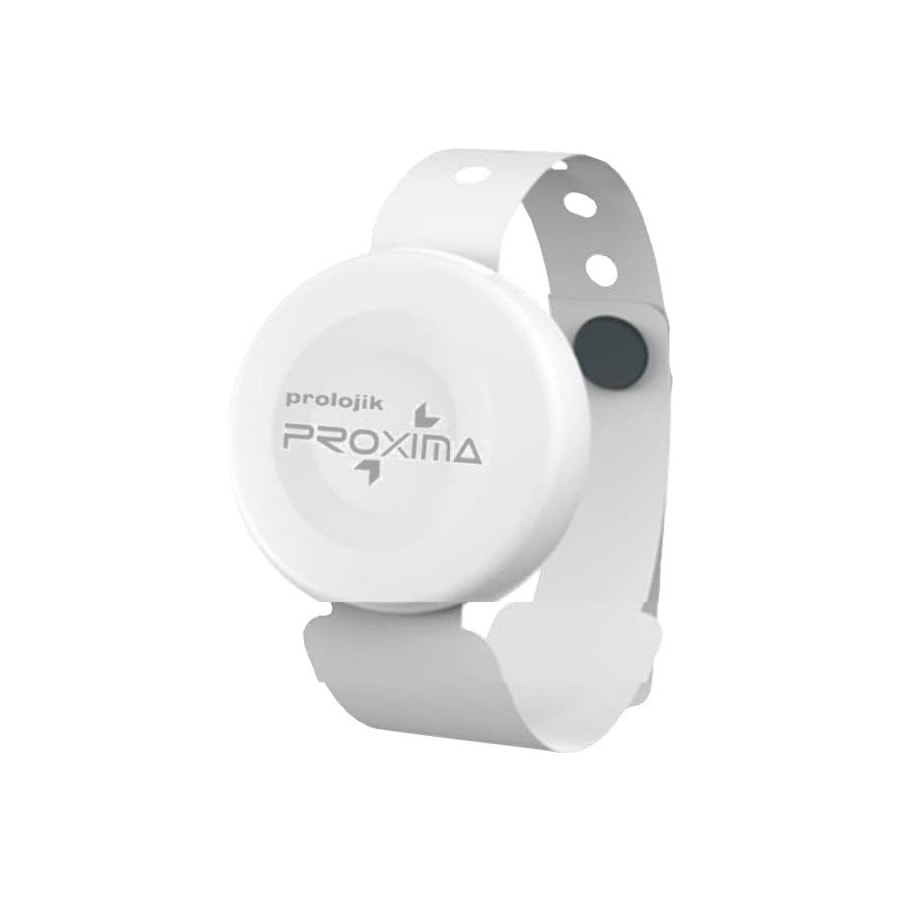

PS182BLE Wristband Sensor

PS182 - BLE Wristband Sensor

Features

Bluetooth 5 compatible.
iBeacon & Eddystone.
IP66.

The PS182 is a discrete wristband sensor. It can measure movement, positioning and tracking. The sensor reports its status using BLE advertising telegrams. These BLE messages can be retrieved by a PS462 Proxima sensor and sent to a head-end PC for space analytics.

Specifications

Wireless Specification

Bluetooth®: BLE advertising.
Frequency: 2.4GHz.
Max transmit Power: 40dBm
Interval: 100ms to 5000ms
Range: 90m

Power

Battery: 3V CR2032.
Battery life: 1 years.
Capacity: 220mAh.

Environment

Operating temperature: -20°C to +60°C.
Working humidity: 0 – 100% RH.
IP rating: 66.

Material

Main body: ABS.
Wristband: TPU.

Dimensions

36mm x 11mm (Dia x W)

Weight

12g

Features

Bluetooth 5 compatible.
iBeacon & Eddystone.
IP66.
