PS320DALI External Photocell

PS320 - DALI External Photocell

Features

IP65 Enclosure.
DALI powered.
Simple installation and wiring.
Available pre addressed or addressable on site.

The external photocell connects to Prolojik LCMs and hubs to provide a sample of external daylight levels for use with daylight linking. An Integral feedback LED allows for the installer to easily verify correct wiring and identify connection.

Prolojik’s PS320 External Photocell is designed to work with Prolojik PL and PC series lighting controllers. The photocell delivers high accuracy light level measurement.

Specifications

Performance

Light Level
Sensor type: Photo-diode.
Accuracy: +/-5% across range.
Field of view: 360˚.

Environment

Storage
Temperature: -40˚C to +80˚C.
Humidity: 0% – 90% non-condensing.

In Use
Temperature: -40 to +80˚C.
Humidity: 10% – 90% non-condensing.

Conformity & Standards

EMC immunity EN50082-1.
EMC emissions EN50081-1.
Housing material flame-proof ABS.
DALI & NEMA compliant.
IEC Standard 62386-102.
NEMA Standard NS243-2004.
Supports DALI 2 & 3 byte protocol.
ARCOM MasterSpec 2013 Classification 29 09 23.

Enclosure

Transparent Polycarbonate Lid.
ABS IP65 Enclosure.

Dimensions

80mm x 82mm x 55mm (L x W x H).
Weight: 40g.

Commissioning aids

IR reception from PC101 – triple flash.
Reboot – Rapid Flash.

Installation

Photocell should be mounted north facing.
Do NOT mount photocell sensor in an obscured location.

Photocell Connector

PC032 2 pole screw terminal connector (for DA, DA connections) via 20mm gland.
Plug included.
Cable diameters 0.5 to 2.5mm².
CE and UL approved.

Technical Data

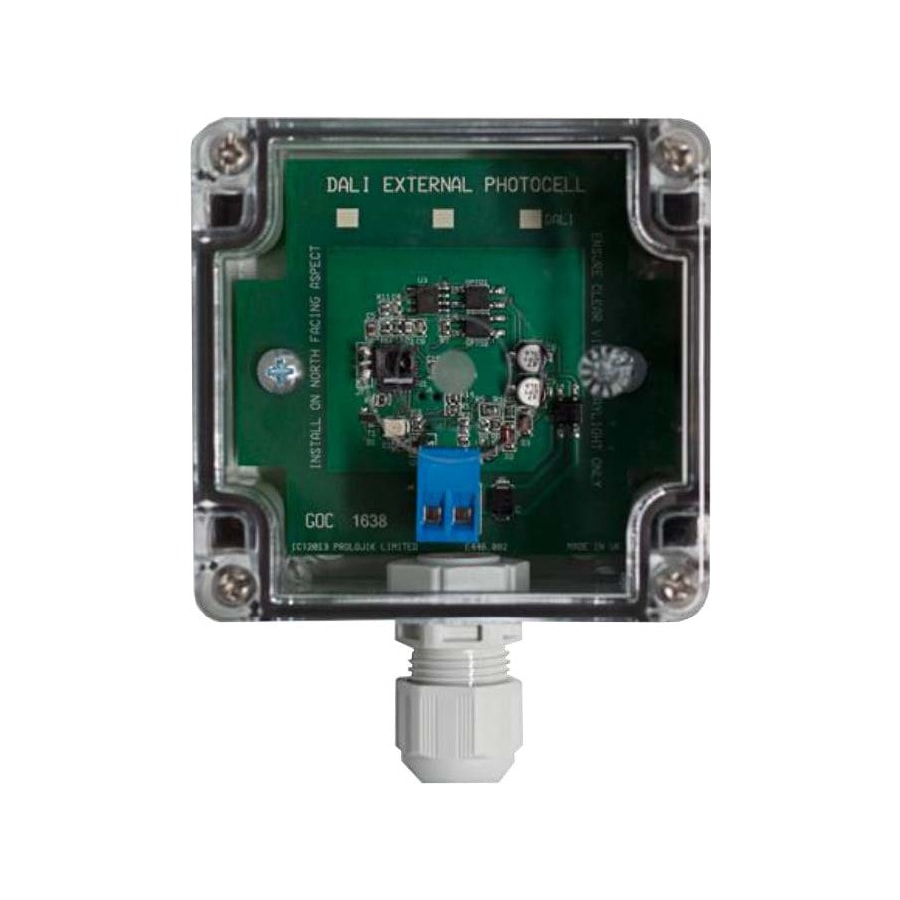

Diagram 1 - PS320 - DALI External Photocell

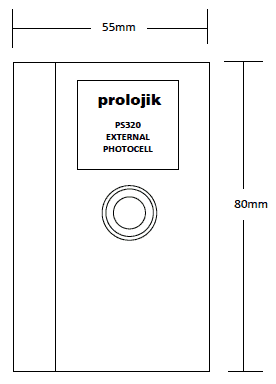

Diagram 2 - PS320 - DALI External Photocell
