Features
Passive infra-red sensor
Light level sensor
Temperature sensor
Active infra-red receiver
Other RAL colours available upon request
Accessories
DSC05 5 meter DALI cable
DSC10 10 meter DALI cable
DSC15 15 meter DALI cable
GC310 IR scene controller
PC032 DALI plug
PC032T DALI T plug

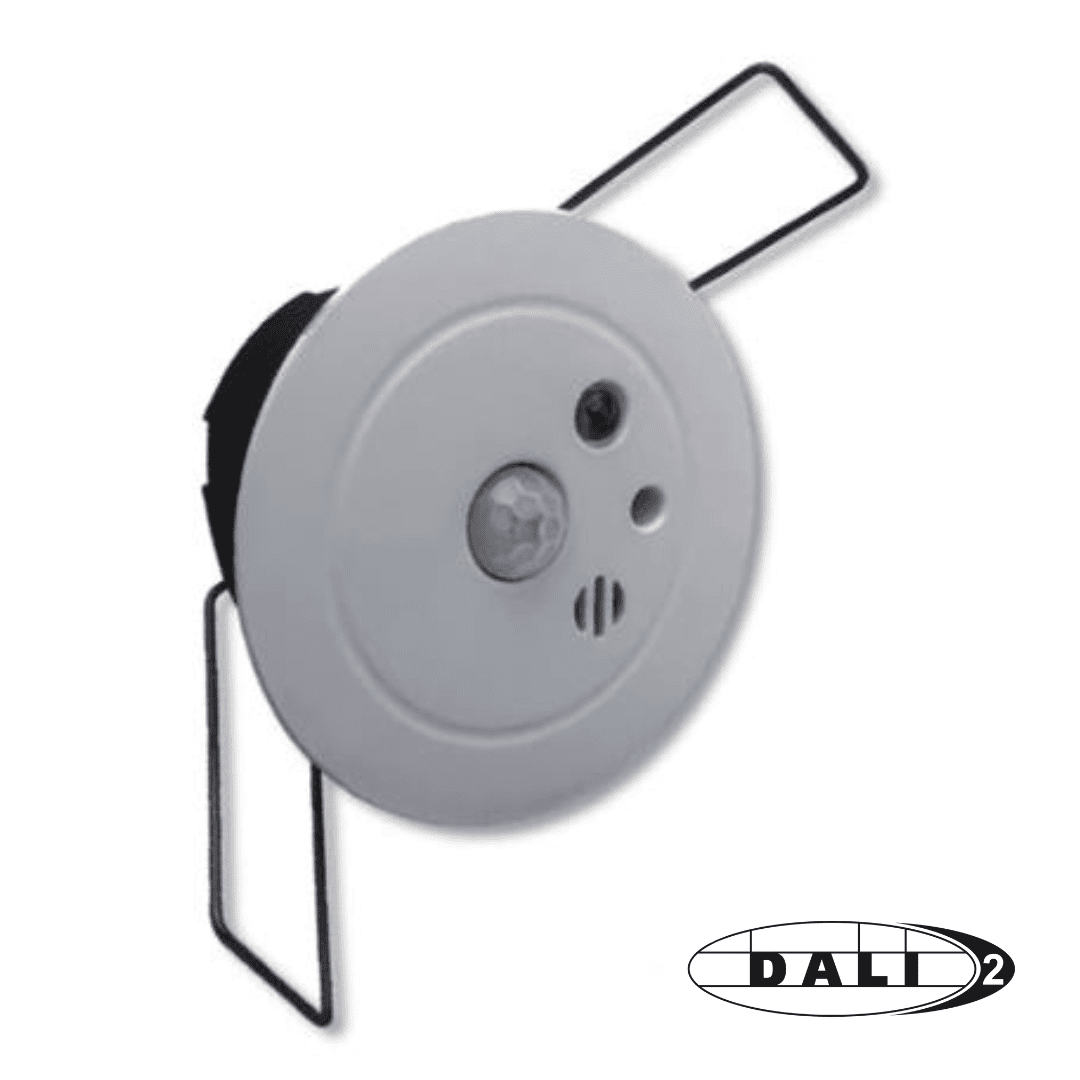

The Prolojik PS432-D2M series 'DALI 2 Certified’ addressable multi-function sensor delivers high accuracy measurement in a discreet form factor.
Prolojik PS432-D2M sensor has been designed to complement the Prolojik range of lighting control modules and DALI controllers and are available in a range of lens types and finishes. All sensors only occupy a single DALI address.
Specifications
Occupancy
Sensor type: Passive Infra-red, Quad Element
Field of view: 360
Coverage: 2.5m ceiling height -7 meters max
Light Level
Sensor type: Photo-diode
Accuracy: +/-5% across range
Field of View: 360
Temperature
Sensor range: 0 to +56
Active Infra-red Receiver
Used for DALI addressing
Used for dimming & scene setting
Environment
Storage
Temperature: -10to +60
Humidity: 0% -90% non-condensing
In Use
Temperature: 0 to +56
Humidity: 10% -90% non-condensing
Conformity & Standards
EMC emissions: EN 61000-6-3
EMC immunity: EN 61000-6-1
Housing material flame-proof ABS
DALI & NEMA compliant
DALI 2 Certified
IEC Standard 62386-102
NEMA Standard NS243-2004
Supports DALI 2 & 3 byteprotocol
ARCOM MasterSpec 2013 Classification 29 09 23 IP rating when installed IP31
Dimensions
21.5mm deep (29.5mm with plug) x 52.2mm diameter
Weight: 22g
Cut out diameter: 40mm
Commissioning Aids
Occupancy walk test via LED –single flash
IR reception from PC100/PC310–triple flash
Reboot –Rapid Flash
Installation
For use with ceiling tiles from 1 to 20 mm thick
A hole of 40mm diameter should cut in the tile before fitting
Do NOT fit within one meter of forced air heating or ventilation, or other sources of heat or draughts
Do NOT obscure sensor by fixtures and fittings
Do NOT fit on a moving or vibrating surface
PS432 Connector
PC032 2 pole screw terminal connector (for DA, DA connections) Plug not included (available from Prolojik)
PC032T Network T screw terminal connector (for DA, DA connections)
Plug not included (available from Prolojik)
Power Consumption
4mA nominal consumption at 15V DALI bus voltage
Colour
White –RAL9003
Black –RAL9005
Technical Data
