Features
Passive infra-red sensor.
Light level sensor.
Temperature sensor.
Active infra-red receiver.
Other RAL colours available upon request.
Accessories
DSC05 - 5 meter DALI cable.
DSC10 - 10 meter DALI cable.
DSC15 - 15 meter DALI cable.
GC310 - IR scene controller.
PC032 - DALI plug.
PC032T - DALI T plug.
Downloads

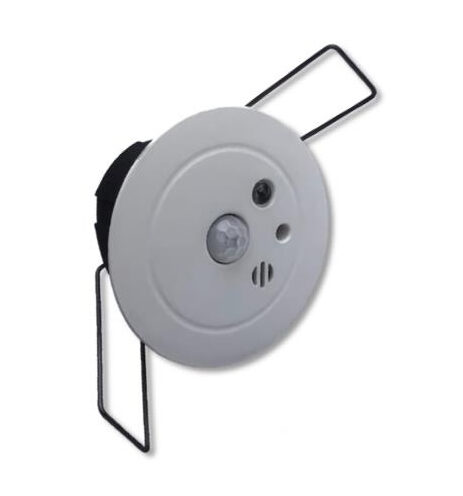

The Prolojik PS432 series mini DALI addressable multi-function sensor delivers high accuracy measurement in a discreet form factor.
Prolojik PS432 sensor has been designed to complement the Prolojik range of lighting control modules and DALI controllers and are available in a range of lens types and finishes.
All sensors only occupy a single DALI address.
Specifications
Occupancy
Sensor type: Passive Infra red, Quad Element.
Field of view: 360°.
Coverage: 2.5m ceiling height 7 meters max.
Light Level
Sensor type: Photo-diode.
Accuracy: +/-5% across range.
Field of View: 360°.
Temperature
Sensor range: 0 to +56°C.
Active Infra-red Receiver
Used for DALI addressing.
Used for dimming & scene setting.
Environment
Storage
Temperature: -10 to +60°C.
Humidity: 0% – 90% non-condensing.
In Use
Temperature: 0 to +56°C.
Humidity: 10% – 90% non-condensing.
Conformity & Standards
EMC emissions: EN 61000-6-3.
EMC immunity: EN 61000-6-1.
Housing material flame-proof ABS.
DALI & NEMA compliant.
IEC Standard 62386-102.
NEMA Standard NS243-2004.
Supports DALI 2 & 3 byte protocol.
ARCOM MasterSpec 2013 Classification 29 09 23 IP rating when installed IP31.

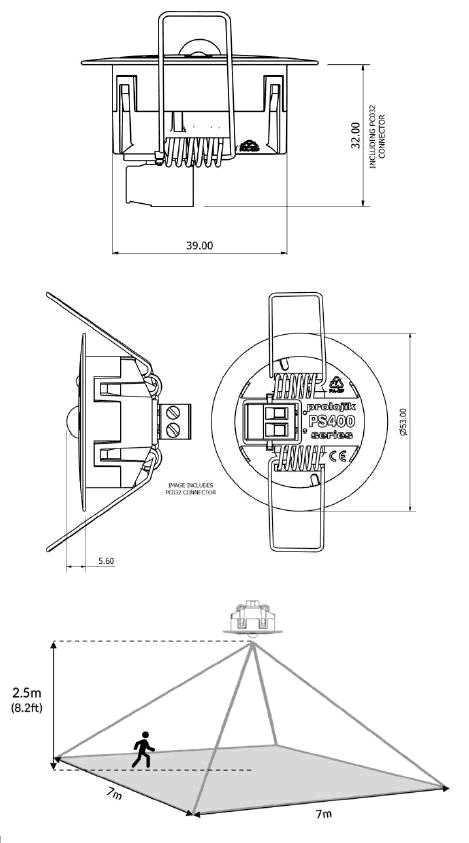

Dimensions
21.5mm deep (29.5mm with plug) x 52.2mm diameter.
Weight: 22g.
Cut out diameter: 40mm.
Commissioning Aids
Occupancy walk test via LED – single flash.
IR reception from PC100/PC310 – triple flash.
Reboot – Rapid Flash.
Installation
For use with ceiling tiles from 1 to 20 mm thick.
A hole of 40mm diameter should cut in the tile before fitting.
Do NOT fit within one meter of forced air heating or ventilation, or other sources of heat or draughts.
Do NOT obscure sensor by fixtures and fittings.
Do NOT fit on a moving or vibrating surface.
PS432 Connector
PC032 2 pole screw terminal connector (for DA, DA connections).
Plug not included (available from Prolojik).
PC032T Network T screw terminal connector (for DA, DA connections).
Plug not included (available from Prolojik).
Power Consumption
4mA nominal consumption at 15V DALI bus voltage
Colour
White – RAL9003.
Black – RAL9005.
