PS532OEMMulti-Function Sensor

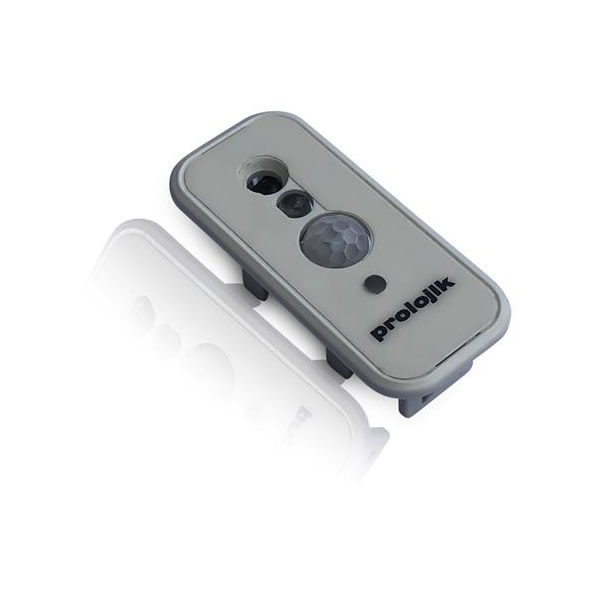

The Prolojik PS532OEM luminaire mounted DALI addressable multi function sensor delivers high accuracy measurement in a discreet form factor. The Prolojik PS532OEM sensor has been designed to complement the PL family of lighting control modules and DALI controllers. The sensors have been designed for minimum installed depth making them suitable for recessed mounting into a large variety of luminaire configurations.

Specifications

Occupancy

Sensor type: Passive Infra-red.
Field of view: 360°.

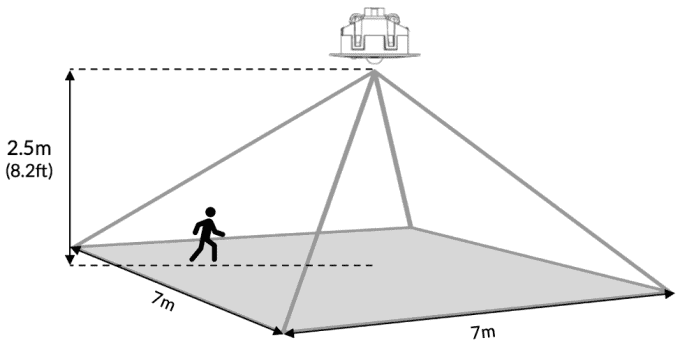

Coverage: 2.5 x height of ceiling (7 meters max).

Light Level

Sensor type: Photo-diode.
Accuracy: +/-5% across range.
Field of view: 360°

Environment

Storage
Temperature: -10°C to +60°C.
Humidity: 0% – 90% non-condensing.

In Use
Temperature: 0 to + 56°C
Humidity: 10% – 90% non-condensing.

Conformity & Standards

EMC emissions: EN 61000-6-3.
EMC immunity: EN 61000-6-1.
Housing material flame proof ABS.
DALI & NEMA compliant.
IEC Standard 62386-102.
NEMA Standard NS243-2004.
ARCOM MasterSpec 2013 Classification 29 09 23.

Dimensions

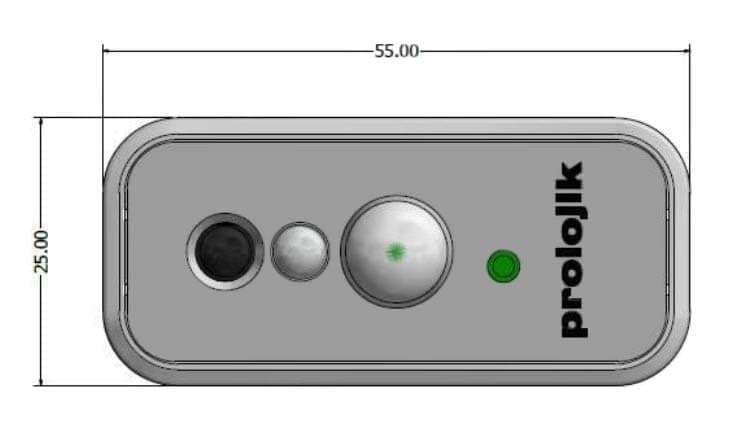

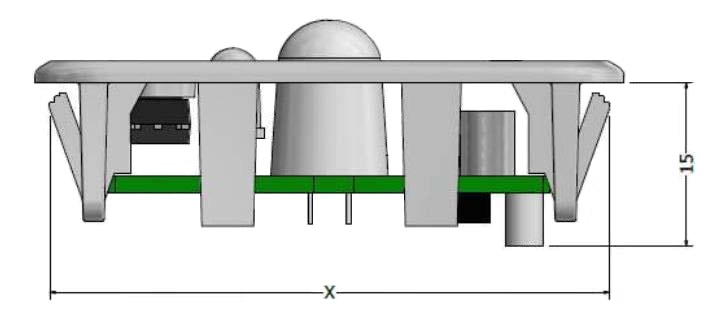

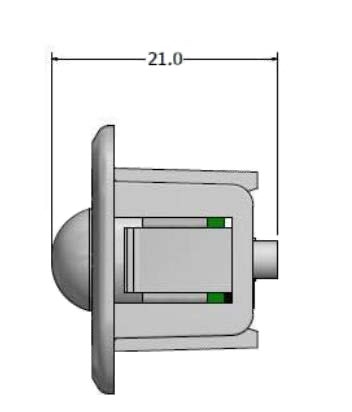

51mm x 19mm x 25mm (L x W x H)

Commissioning Aids

Occupancy walk test via LED – single flash.
IR reception form PC100 – triple flash.
Reboot – Rapid Flash.

Installation

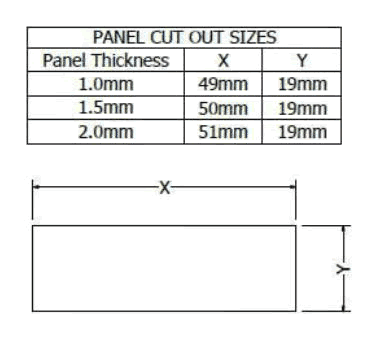

Suitable for recessed mounting within luminaire Maximum 2mm thick luminaire body.
Do NOT fit within one meter of forced air heating or ventilation, or other sources of heat or draughts.
Do NOT fit so that direct sunlight or artificial light passes straight into the unit.
Do NOT obscure sensor by fixtures and fittings.
Do NOT fit on a moving or vibrating surface.

PS532OEM Connection

2 wire DALI bus

Power Consumption

4mA nominal consumption at 15V DALI bus voltage
